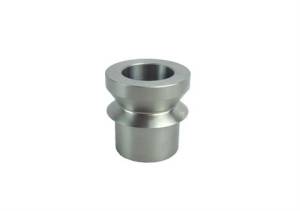

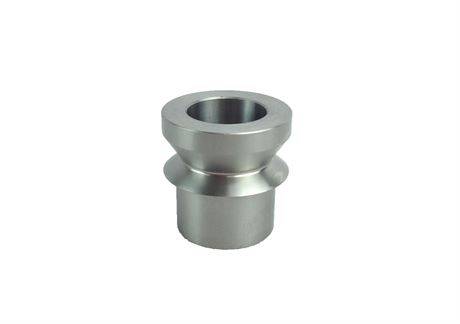

1" to 5/8" Stainless Steel High Misalignment Spacer

WFO 5125-625
Pricing: $10.99
Qty:

Description

Details:

  • 1” to 5/8” High Misalignment Spacer
  • Made out of 303 Stainless steel.
  • This spacer fits into the 1.25"x1" rod ends.
  • With two of these spacers, your overall width will be 2.625" wide.
  • MADE IN THE USA!



Specifications:

  1. Stack Width - 2.625”
  2. Head Dia. - 1.230”
  3. Heim Ball Width - 1.375”
  4. Shoulder Height - .625”
  5. Heim Hole Dia. - 1.000”
  6. Bolt Hole Dia. - .625”



 Heim Stack Details



Shipping Information

  • Item Requires Shipping
  • 0.2 lbs.
  • W1.2300” x H1.2300” x L1.3130”
