WFO Concepts - Axle Shims

Suspension - Axle Shims

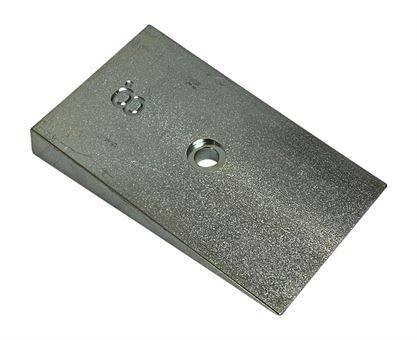

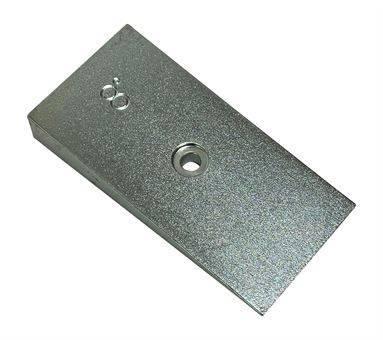

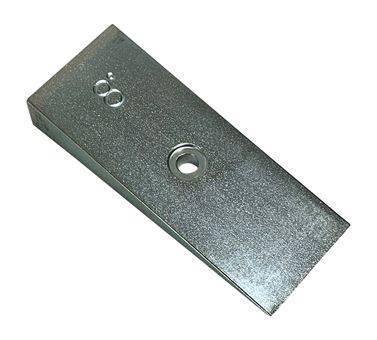

WFO Concepts steel axle shims are designed to change your pinion or caster angle on a leaf spring suspended vehicle. We offer our shims in a variety of widths: 1.75",  2", 2.5”, 2.75" or 3" wide.  They are CNC machined from mild steel, Silver Zinc Plated and have a 5/16” center pin hole milled into them (2.75" and 3" shims have a 3/8" center pin hole).  If you have larger center pins, simply drill the center hole out.  THESE SHIMS ARE DESIGNED TO BOLT INTO YOUR LEAF SPRING PACK!  You will need to clamp your springs, remove the center pin, and bolt the shim into the spring pack!  If you are using these shims on a front axle, please read the paragraph about “Caster Angle” on the product page. We offer these shims in 2, 4, 6, and 8 degree sizes.

Made in the U.S.A.

Axle shims are sold separately, NOT in pairs.
