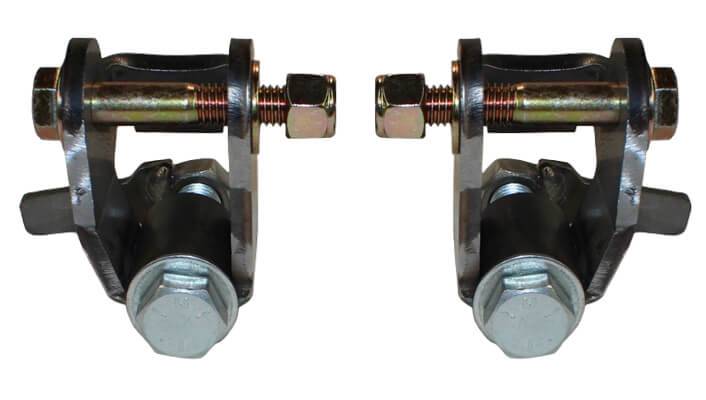

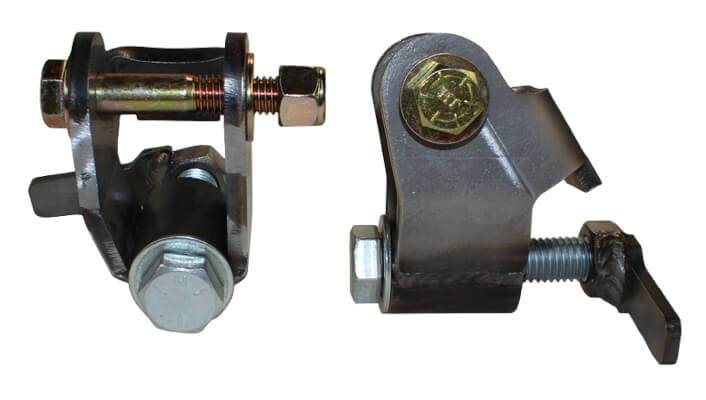

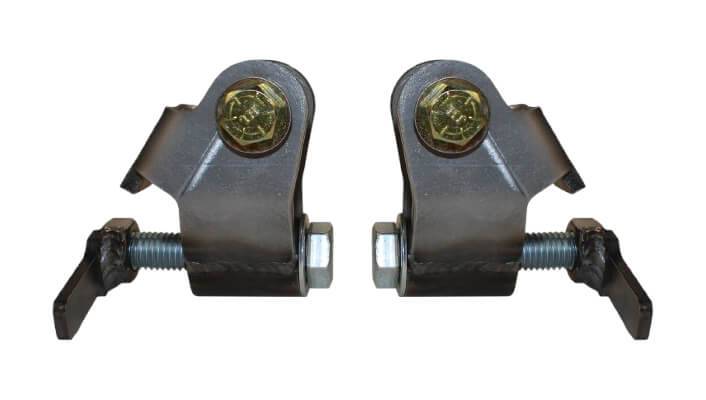

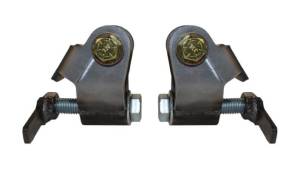

Coilover Relocation Bracket for 2005-2017 Ford Super Duty Axle, Pair

Are you ditching the OEM Ford coils and shock package? Do you want to run 2.5” coilovers on your vehicle?

If so, grab a pair of our relocation brackets that fit right into your OEM shock location on your Ford axle!

The issue with running a coilover in the OEM shock location is that factory uses a 16mm bolt, almost a 5/8” bolt, and has a 1-3/4” mounting width. Most coilovers on the market come with a 1/2” bolt and a 1-1/2” mounting surface. These brackets slip into place with the provided hardware and move the pivot point up 2-5/16” and out about 1/4”. This positioning puts the bracket in the ideal location for the lower coilover retainer to clear the large clevis ends on the links. This positioning also leaves just enough clearance space between the caliper and coilover at full turn.
