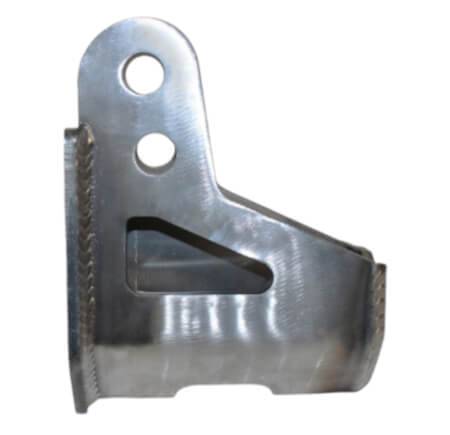

Track Bar Bracket - Axle Side - FSD (3.75" Tube) - 3" and 4.5" Tall, 1.28" Wide, 3/4" Bolt Hole

We created this axle side track bar bracket to use with our 2005-2015 Toyota Tacoma Straight Axle Swap kits when using an '05+ Ford Super Duty axle.

This bracket sits perfectly on the axle and provides 2 sets of holes when running either stock steering setups or upgrading to crossover steering.

• Made out of 1/4" P&O steel
• Inner width 1.28"
• Accepts a 3/4" bolt
• Dual hole - top of axle tube to center of first bolt hole is 3", second hole is at 4.5"

On our trackbars, we run an FK heim joint (part #FK HRSMXR12T) on the axle side. This heim joint has a 7/8" shank with a 3/4" hole and has misalignment spacers built into it for an overall width of 1.28" (just over 1-1/4" wide).

MADE IN THE USA!
