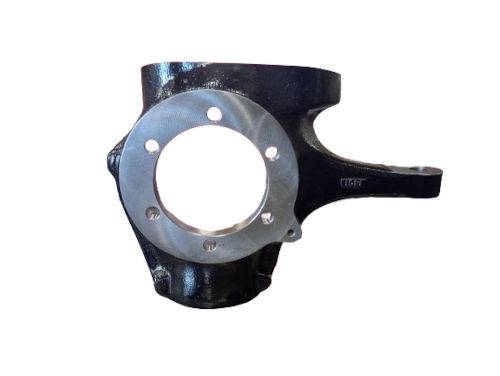

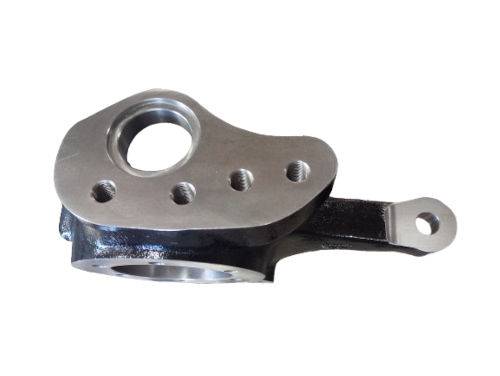

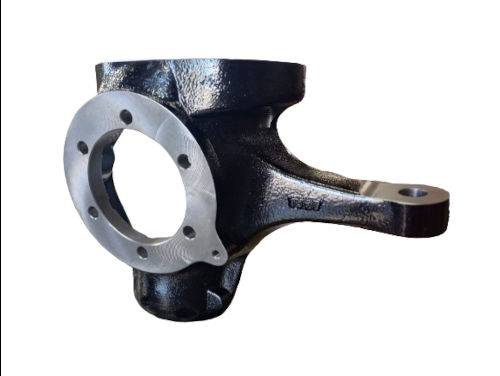

Dana 44 / 10 Bolt Flat Top Knuckle, 4 Hole, Passenger Side, Bottom Up Taper

WFO 159BU-4
Pricing: $250.00


Introducing WFO's factory replacement passenger side flat-top knuckle. CNC milled, drilled, and tapped to 9/16” x 18 threads. The tie rod tapered hole on this knuckle is tapered from the bottom up.

Our knuckle boasts a thicker and stronger casting compared to the factory knuckles, ensuring enhanced durability. Additionally, it features an added 4th hole to accommodate aftermarket steering arms.

This knuckle is perfect for high-steer conversions! However, if you plan on utilizing cross-over steering and connecting your factory tie-rod, please consider the following details before selecting the appropriate version:

  • All Chevy Dana 44 axles from 1971 to 1976 had "top down" taper.
  • On all Jeep Wagoneer front axles, the taper was also "top-down."
  • All Chevy Dana 44 axles from 1977 to 1991 were tapered from the “bottom up” and did not have a flat-top knuckle on the passenger side. If you are putting this on a 1977-1991 front axle, please select one with "bottom up" taper.


PLEASE NOTE: This knuckle has 6 spindle studs and will not fit Dodge, Ford, or Scout 44 front axles. Be sure that the axle you are installing this knuckle on uses 6 bolt spindles!


Product Series


  • WFO 159BU-4
  • WFO 159BU-4
  • WFO Concepts
  • New


Shipping Information

  • Item Requires Shipping
  • 12.0 lbs.
  • W11.5000” x H4.5000” x L8.0000”
