Flat Pitman Arm, NO HOLE

PM536FPA
Pricing: $79.95
Qty:

Description

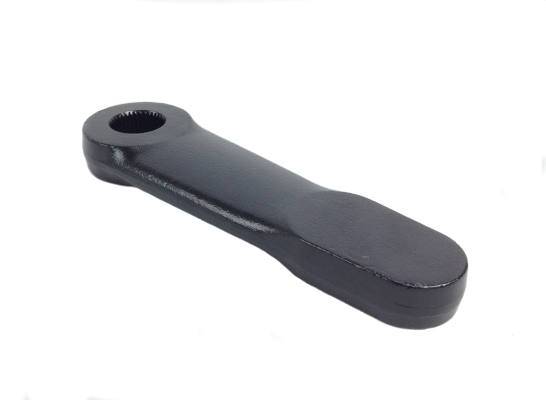

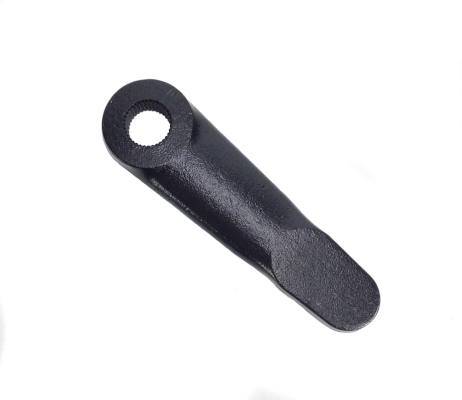

This flat pitman arm with NO HOLE allows you, the builder, to put the drag link hole at the optimal position to maximize steering radius. The hole for the sector shaft is completely splined eliminating any clocking issues (you still have to put it on correctly!) and will fit the standard saginaw box. It has 36 splines.

The arm measures 7.5" from the center of the sector shaft hole to the end of the arm and 4 5/8" from the center of the sector shaft hole to the beginning of the flat portion where you would drill the hole. This means it can be reamed anywhere from 5" to 6.75" from the center of the sector shaft hole.

Please call us if you have any questions.

If you want to use this on a Duramax, Low Lift Height, Straight Axle Swap you will also need to modify the length of the pitman for clearance issues. Give us a call and we can walk you through it, or, we sell it already modified in our Straight Axle Swap section for the DMAX low lift height.



Product Series

Details

  • PM536FPA
  • PM536FPA
  • WFO Concepts
  • New

Categories

Product Series

Shipping Information

  • Item Requires Shipping
  • 4.0 lbs.
  • W6.0000” x H4.0000” x L8.0000”
