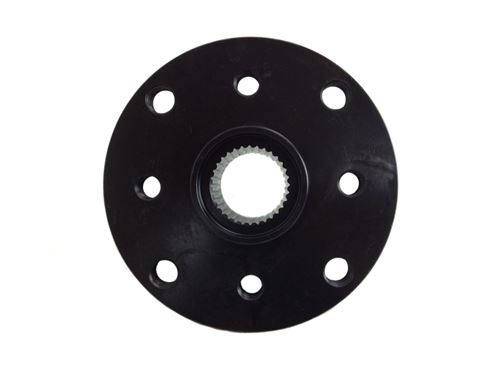

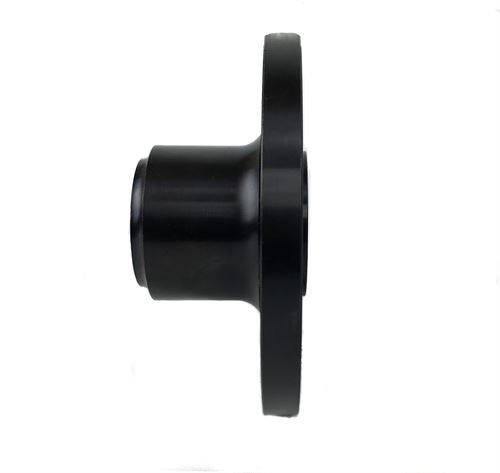

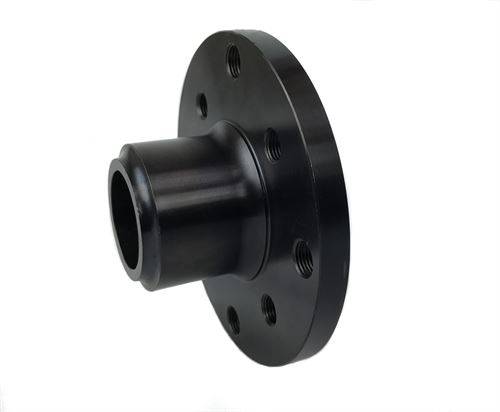

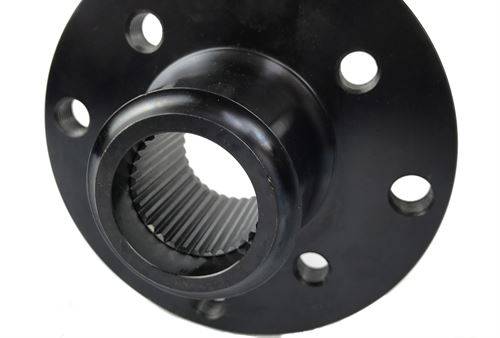

Flange, 1350/1310 CV, 32 Spline, Multi Bolt, 2 Inch Pilot, with 1/2" Bolts

DM 3051-1/2" BOLT KIT
Pricing: $86.15


Flange plus four 1/2", 12 point flanged driveline bolts.


1350/1310 Flange, CV, 32 Spline, Multi Bolt, 2” Pilot, 2.125” Seal. This is a great option for your Atlas, 205, or HD rear output t-case. This flange will allow you to run many different driveline styles. You can run 1350 CVs, 1310 CVs, 1310 flat flanges, 1350 flat flanges, and even 1410 CV and flat flanges.

There are two separate patterns on this flange. All 8 holes are threaded.
(4) of the holes accept a 1/2"-20 x 1" bolt (included with this flange)
(4) of the holes accept a 7/16"-20 x 1" bolt


  • Measurement between the large holes diagonally is 4.25"
  • Measurement between the small holes diagonally is 3.5"
  • Measurement between the large holes, straight across left to right, is 3"
  • Measurement between the small holes, straight across left to right, is 2.5"


Product Series


  • DM 3051-1/2" BOLT KIT
  • DM 3051-1/2" BOLT KIT
  • WFO Concepts
  • New


Shipping Information

  • Item Requires Shipping
  • 5.0 lbs.
  • W6.0000” x H4.0000” x L8.0000”
