Rear Axle Truss with Pinion Guard and Upper Link Mounts for 1.25" Heim Joint with 5/8" Bolt, 20 Degree

Pricing: $440.00


GM Full Floating 14 Bolt Truss with Pinion Guard
and 20 Degree Upper Link Mounts for 1.25" Heim Joint with 5/8" Bolt (WFO 1952-20-PR)


This truss is a perfect start to your rear link setup. It is also narrow enough to fit on most leaf spring rear axle setups or rear axles using rear coil buckets.

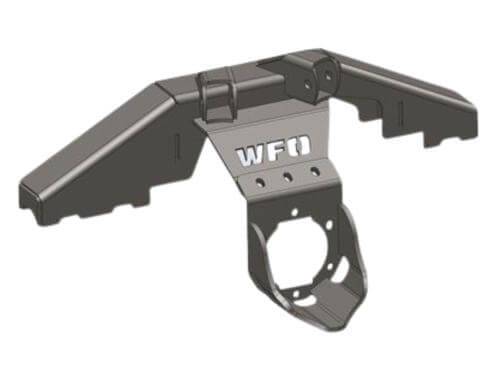

The truss is laser cut from 1/4" thick steel and comes welded together as you see in the picture. The curved pinion guard is made out of 3/8" thick steel. It also comes with longer pinion support bolts and the necessary hardware to bolt the pinion support to the truss.

You can also purchase the individual upper mounts so you can set the spread where you want.

Fits 1973-2010 GM 14 bolt full floating rear axles with a 10.5" ring gear.


Please Note: In order to assure a tight and low fit on a 1991-2010 newer ribbed housing, you will need to grind a few casting ribs off the top of your existing 14 Bolt housing.



Product Series


  • WFO RT-GM14PG-4
  • WFO RT-GM14PG-4
  • WFO Concepts
  • New

Shipping Information

  • Item Requires Shipping
  • 35.0 lbs.
  • W3.5000” x H7.2500” x L32.1880”
