2000-2010 GMC/Chevy 3/4 & 1 Ton Shackle Flip, 6" Shackles

WFO SF-CHD-KIT-6-B
Pricing: $379.99
Qty:

Description

Shackle Flip Kit for 2000-2010 Chevy HD 2500/3500 Truck. Comes With 6" Long Shackles.

Does not fit 1500HD models - use WFO SF-C0110-KIT

This shackle flip kit can give you 5.5" of lift with 6" shackles. This kit will allow you to lift the rear of your truck, without sacrificing the ride quality, or payload capability. It also helps stop axle wrap by eliminating the need for rear blocks when lifting your truck. These brackets can also be used with lift springs, in order to achieve a taller lift.

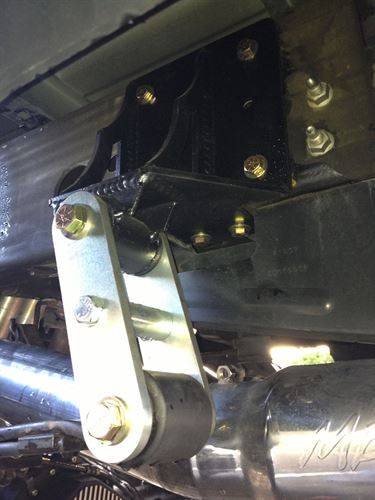

The installation of this kit requires the use of some basic tools. You will need to be able to support the rear of the truck with a lift or jack stands while you remove the old shackle hangers. Simply grind, chisel, or plasma cut the old rivets off your stock hangers. Chase the rivet holes in your frame with a 7/16" drill bit. Then bolt the new hanger onto the truck with the supplied hardware. Kit comes in raw steel form. Please paint before installation.

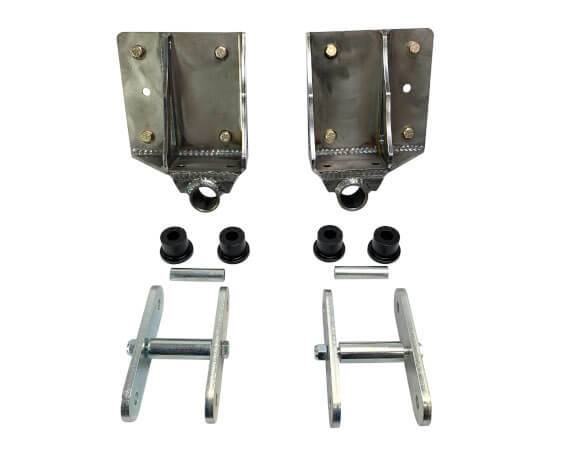

Kit includes:

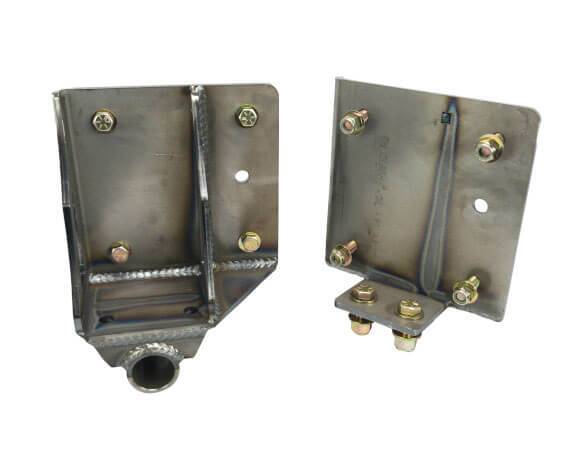

(2) Shackle hangers (bare steel)
(12) 7/16" grade 8 bolts, washers and nylocks to attach the hanger to the frame of the truck and underneath the frame of the truck
(2) sets of 3/8" shackles, 6" long
(4) bushings and two inner sleeves
(4) 9/16" x 5" Grade 8 shackle bolts, washers and nylocks (not pictured)


MADE IN THE USA!



Caution: These shackle flip kits will change the pinion angle at least 6 degrees. Depending on your driveline angle, you may need to install shims to achieve the correct pinion angle.



Product Series

Shipping Information

  • Item Requires Shipping
  • 31.0 lbs.
