2001-2010 GMC/Chevy 1/2 Ton Shackle Flip, 5" Shackles

WFO SF-C0110-KIT-5-B
Was: $399.99
Sale: $339.99
Save: 15%
Save: $60.00
Qty:

Description

This is a rear shackle flip for a 2001-2010 Chevy 1/2 ton 1500. This kit comes with 5" long shackles.

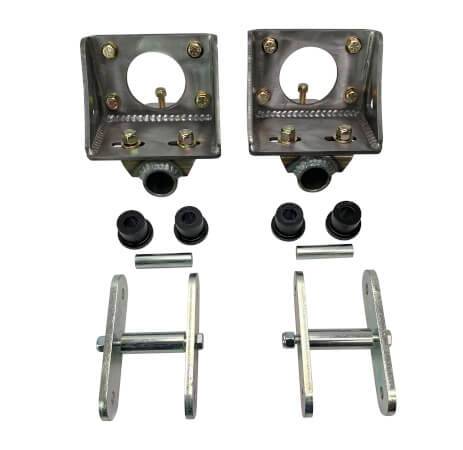

Kit includes:
(2) Shackle hangers. Both are identical (bare steel)
(10) 7/16" Grade 8 bolts, washers and nylocks to attach the hanger to the frame of the truck
(4) 1/2" Grade 8 bolts, washers and nylocks to attach the shackle hanger in the proper location to the bottom of the hanger bracket
(2) Sets of 3/8" shackles, 5" long
(4) Bushings and two inner sleeves
(4) 9/16" x 5" Grade 8 shackle bolts, washers and nylocks (not pictured)


MADE IN THE USA!



Caution: This shackle flip kit will change the pinion angle. You may need to shim your rear leaf springs in order to achieve proper driveline geometry.




Product Series

Details

  • WFO SF-C0110-KIT-5-B
  • WFO SF-C0110-KIT-5-B
  • WFO Concepts
  • New

Shipping Information

  • Item Requires Shipping
  • 31.0 lbs.
