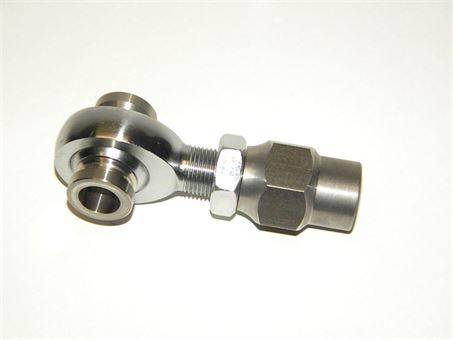

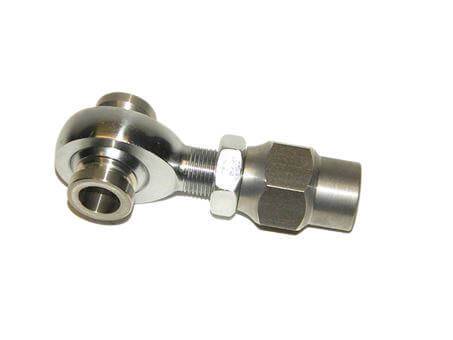

3/4" x 3/4" RH Rod End Kit w/ Tube Insert (1" ID), Jam Nut & High Misalignment Spacers (5/8")

XMR12-KIT-2
Pricing: $47.48
Qty:

Description

3/4" x 3/4" RH heat treated chromoly rod end kit. This kit comes with one 3/4" x 3/4" right hand rod end, one zinc plated jam nut, one hex shaped tube insert, and two stainless steel high misalignment spacers for use with 5/8" bolts. With the spacers installed, the mounting width of the rod end is 1 3/4".

We use the 1" ID tube inserts with 1"x .250 wall DOM tubing, or 1.25"x .120 wall tubing.  We use the 1.063" ID tube inserts with 1.5"x.219 wall tubing.



Do not weld bungs with rod ends threaded into them!



This Kit includes:
XMR12: 3/4" x 3/4" RH Male Heim Joint  (Qty: 1)
WFO 5075-625: 3/4" to 5/8" Stainless Steel High Mis-Alignment Spacer - 3/4 to 5/8 High Mis-Alignment Spacer  (Qty: 2)
WFO 3416-R: 3/4"-16 Jam Nut, Right Hand - 3/4"-16 Jam Nut, Right Hand  (Qty: 1)
WFO 1751-R: 3/4"-16 RH Threaded Tube Insert, 1" I.D. Tube  (Qty: 1)



Product Series

Details

  • XMR12-KIT-2
  • XMR12-KIT-2
  • WFO Concepts
  • New

Categories

Shipping Information

  • Item Requires Shipping
  • 1.5 lbs.
