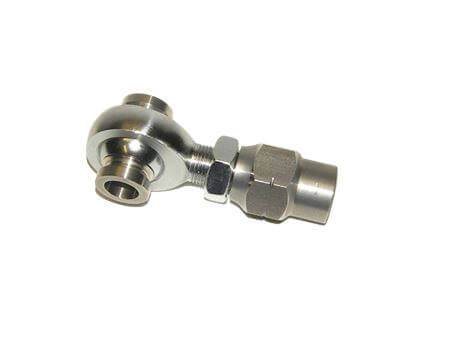

3/4" x 3/4" LH Rod End Kit w/ Tube Insert (1" ID), Jam Nut & High Misalignment Spacers (1/2")

XML12-KIT-1
Pricing: $47.48
Qty:

Description

3/4" x 3/4" LH heat treated chromoly rod end kit. This kit comes with one 3/4" x 3/4" left hand rod end, one zinc plated jam nut, one hex shaped tube insert, and two stainless steel high misalignment spacers for use with 1/2". With the spacers installed, the mounting width of the rod end is 1 3/4".

We use the 1" ID tube inserts with 1"x.250 wall DOM tubing, or 1.25"x.120 wall tubing. We use the 1.063" ID tube inserts with 1.5"x.219 wall tubing.



This Kit includes:
XML12: 3/4" x 3/4" LH Male Heim Joint  (Qty: 1)|
WFO 5075-5: 3/4" to 1/2" Stainless Steel High Mis-Alignment Spacer - 3/4 to 1/2 High Mis-Alignment Spacer  (Qty: 1)
WFO 3416-L: 3/4"-16 Jam Nut, Left Hand - 3/4"-16 Jam Nut, Left Hand  (Qty: 2)
WFO 1751-L: 3/4"-16 LH Threaded Tube Insert, 1" I.D. Tube  (Qty: 1)



Product Series

Details

  • XML12-KIT-1
  • XML12-KIT-1
  • WFO Concepts
  • New

Categories

Shipping Information

  • Item Requires Shipping
  • 1.5 lbs.
