U-Bolt Flip Kit For 3.375" Axle Tube, 14 Bolt with 12" Long U-Bolts

WFO 1775-KIT-12
Pricing: $123.50


This U-bolt kit fits 14 bolt full floating Chevy rear axles with standard Chevy or Jeep leaf springs.

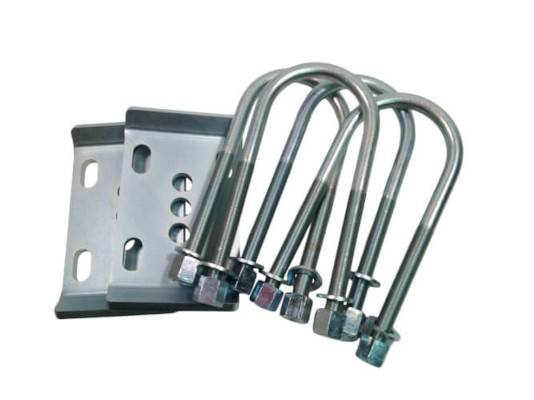

This U-bolt kit comes with two leaf spring plates and 4 U-bolts with nuts and washers.  The spring plates are the universal (WFO 1791) spring plates for 2.5" wide leaf springs.  They are CNC laser cut from 3/8" steel with both ends broke up for strength and silver zinc plated.  The U-bolts are 5/8" thick and come with washers and high nuts.  The U-bolts are 3.375" wide and 12" long.  They have 5" of threads.

U-bolt measurements are measured from inside of the bend to the end of the threads.


This Kit includes:
WFO UB-011: 3.375" x 12" x 5/8" Round U-Bolt (Qty: 4)
FWH-58F436Z: 5/8" Hardened Washer (Qty: 8)
HN-58F5Z: 5/8" High Nut (Qty: 8)
WFO 1791: 2.5" Spring Plate, Universal, Chevy 44/10 Bolt Front (Qty: 2)


Product Series


  • WFO 1775-KIT-12
  • WFO 1775-KIT-12
  • WFO Concepts
  • New

Product Series

Shipping Information

  • Item Requires Shipping
  • 12.0 lbs.
