Lower, Axle Link Mounts, for 1.25" Heims 10 Degrees Unwelded

WFO 1944-10-KIT
Pricing: $26.00
Qty:

Description

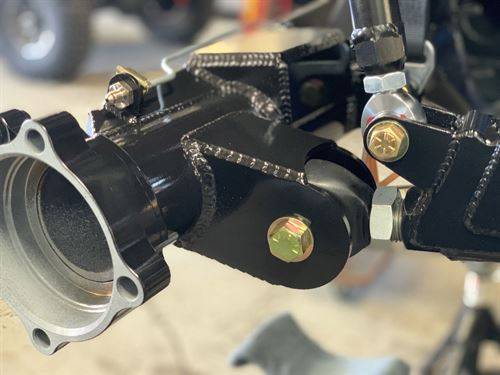

This is our Universal Axle Link Mount Tab kit - 10 degrees, unwelded.

The tabs are laser cut out of .25" steel and cut for 3.375" Tube but will work on axle tube diameters from 3 1/8" to 3 1/2".

The bolt hole size is 9/16" but could easily be drilled out to a larger size if necessary. The inside width is 2.625 for large 1.25" heims.

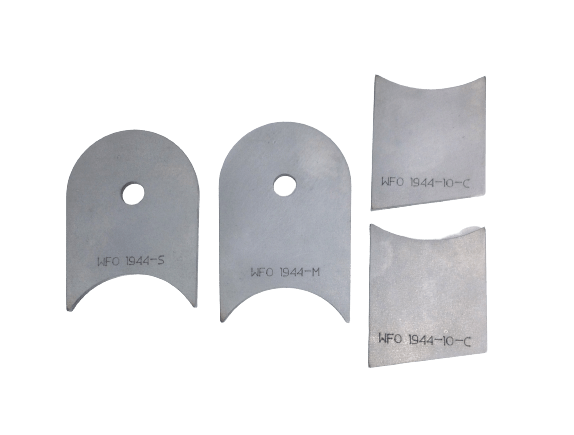

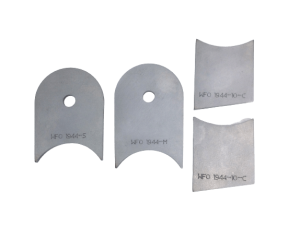

In the unwelded kit, you will receive one smaller tab, one larger tab and two caps so the link mount will be completely boxed for the most strength. By using two different size tabs this makes the link mount lean off the axle tube at an angle.



Sold Individually.

Welding required.



MADE IN THE USA!



Product Series

Details

  • WFO 1944-10-KIT
  • WFO 1944-10-KIT
  • WFO Concepts
  • New

Categories

Shipping Information

  • Item Requires Shipping
  • 1.0 lbs.
