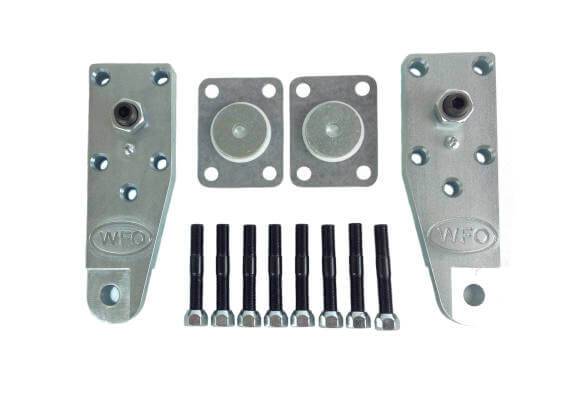

Heavy Duty Steering Arm Set 3/4" Hole Arms and Studs

WFO 1110HDA-34K
Pricing: $375.00



These are forward facing, springless, Dana 60 kingpin, Steering arms.  This steering arm set is tapered for Chevy tie-rod ends (ES2233LM, EX2234R), and works with the "Inverted T" style tie-rod and draglink setup.  The arms are a right and left side, and have standard ackerman angle built into them.  The center of kingpin to center of tie-rod hole is 6.25" long.  The arms have 10 degrees milled into them to make up for kingpin inclination.  If you want to run heims or rod ends with these arms you can mount the tie-rod on the bottom of the arms, and the draglink on the top, sharing the same bolt on the passenger side.

This Kit includes:
WFO 1111HDA-34: D60 Heavy Duty Adjustable High Steer Arm, LH w/ 3/4" Hole (Qty: 1)
WFO 1112HDA-34: D60 Heavy Duty Adjustable High Steer Arm, RH w/ 3/4" Hole (Qty: 1)
WFO 1100-HDA: D60 3/8" Spacer For HDA Arms (Qty: 2)
SSS-34F134P: 3/4-16 Set Screw For HDA Arms (Qty: 2)
WFO 3416-R: 3/4"-16 Jam Nut, Right Hand - 3/4"-16 Jam Nut, Right Hand (Qty: 2)
DAN37307: D60 Kingpin Cap Gasket (Qty: 2)
1095K65: Grease Zerk (Qty: 2)
WFO 1152: D60 High Steer Nuts (Qty: 8)
WFO 1153: D60 High Steer Studs (Qty: 8)

Product Series


  • WFO 1110HDA-34K
  • WFO 1110HDA-34K
  • WFO Concepts
  • New


Shipping Information

  • Item Requires Shipping
  • 17.0 lbs.
