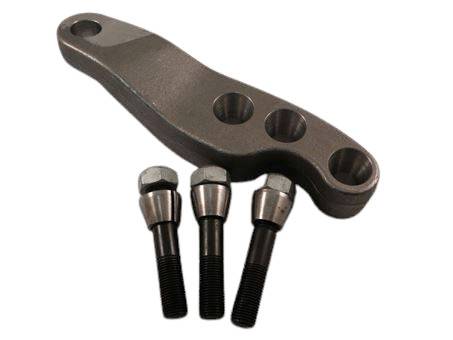

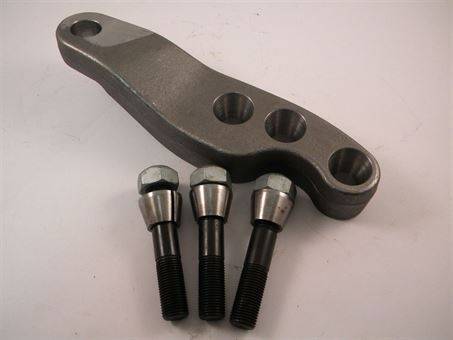

Dana 44/10 Bolt Forged Cross-Over Arm, 2" Tall Tie Rod Taper Arm with Hardware

WFO 1218-KIT
Pricing: $141.00
Qty:

Description

This right side steering arm and hardware kit will work perfect for cross-over steering on a Dana 44 or 10 bolt front axles.  This steering arm is 2" tall but still uses stock height studs.  This arm works best if you are using a 5" to 6" long pitman arm.  If you are doing cross-over on a Jeep YJ, this is the perfect arm to go with the stock YJ pitman arm.  This steering arm is 6" from center of ball joint to center of draglink hole.  The arm can be ordered tapered for Chevy tie-rod ends, (EX2234R, EX2234L, ES2234R, ES2233L, ES2010L, ES2010R) or Chevy draglink ends, (ES2026R, ES2027L)  Please choose the correct taper for your application.

The kit comes with 3 studs/nuts/cones.  The studs have 9/16x18 threads.

Remember, we can also machine your knuckle for you!


This Kit includes:
WFO 1218: Dana 44/10 Bolt Forged Cross-Over Arm, 2" Tall, Tie Rod Taper (Qty: 1)
WFO 1252: D44 High Steer Stud (Qty: 3)
WFO 1254: D44 High Steer Nut (Qty: 3)
WFO 1255: D44 High Steer Cone (Qty: 3)

Product Series

Details

  • WFO 1218-KIT
  • WFO 1218-KIT
  • WFO Concepts
  • New

Categories

Shipping Information

  • Item Requires Shipping
  • 6.0 lbs.
