Full High Steer Inverted T Kit Without Tubing

WFO IT-NT-KIT
Pricing: $365.00
Qty:

Description

To save you some cost on shipping, this kit has NO TUBING!

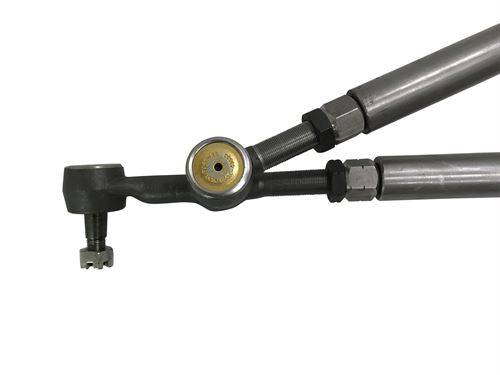

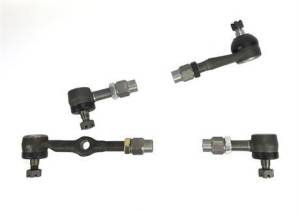

This steering kit comes with the 4 Moog Chevy tie-rod and draglink ends, 4 jam nuts, and 4 weld-in tube inserts that we use in our complete Inverted T kit. All you need to do is provide the 1.5" x .250 wall DOM and cut it to the proper length you need for your application, weld in the supplied tube inserts, thread the tie rod and drag link ends in, set your toe, and your finished!



Kit Includes
ES2233LM
ES2027L
2xES2234R
2x WFO 1876-LR (1" tube inserts)



MADE IN THE USA!



Welding required.



This Kit includes:
WFO 1876-L: 7/8"-18 LH Threaded Tube Insert, 1" I.D. Tube (Qty: 2)
WFO 1876-R: 7/8"-18 RH Threaded Tube Insert, 1" I.D. Tube (Qty: 2)
ES2233LM: 7/8"-18 LH Thread MOOG Tie-Rod End, Tapered - 7/8"-18 LH Thread MOOG Tie-Rod End, Tapered (Qty: 1)
ES2027L: 7/8"-18 LH Thread MOOG Draglink End (Qty: 1)
ES2234R: 7/8"-18 RH Thread MOOG Tie-Rod End - 7/8"-18 RH Thread MOOG Tie-Rod End (Qty: 2)
ES7818L: 7/8"-18 Jam Nut, Left Hand - 7/8"-18 Jam Nut, Left Hand (Qty: 1)



Product Series

Details

  • WFO IT-NT-KIT
  • WFO IT-NT-KIT
  • WFO Concepts
  • New

Categories

Shipping Information

  • Item Requires Shipping
  • 11.0 lbs.
  • W4.0000” x H6.0000” x L11.0000”
