Ford Dana 44 Knuckle Kit with 7" Long Steering Arms

D44001F7-KIT
Pricing: $1,288.99

Qty:

Description

This is a Ford Dana 44 knuckle and steering arm kit.  You can get the kit with 6" long steering arms or 7" long steering arms.  In leaf spring applications we always suggest the 6" arms which will work great with most 5" to 6" long pitman arms.  In a coil spring application we suggest using the 7" arms in order to keep your steering linkage from hitting your coils.  The 7" arms work best with longer pitman arms such as the factory Jeep Wagoneer pitman arm.

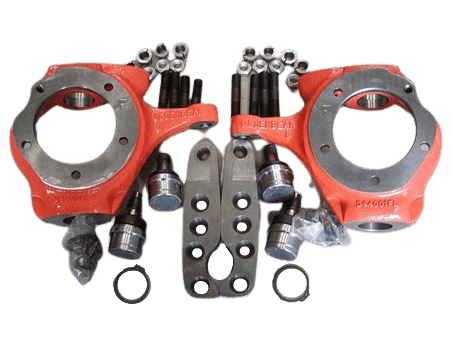

Kit includes:
 -Pair of 5 bolt spindle, 4 hole, flat-top Ford 44 knuckles
 -Pair of steering arms 7" long
 -8 studs, nuts, and cones, already installed in knuckle
 -2 sets of MOOG ball joints, already pressed into the knuckles and ready to go
 -All new spindle studs and nuts

These knuckles will fit Ford 1/2 ton and 3/4 open knuckle, Dana 44 front axles, 1979 and older.  Be sure that you have 5 bolt spindle outers!


This Kit includes:
D44001FL: Ford 44, Left Hand (Driver) (Qty: 1)
D44001FR: Ford 44, Right Hand (Passenger) (Qty: 1)
WFO 1213D: Dana 44 1" Tall High Steer Arm, 7" Long, Reid 4th Hole, Left Side (Qty: 1)
WFO 1214D: Dana 44 1" Tall High Steer Arm, 7" Long, Reid 4th Hole, Right Side (Qty: 1)
WFO 1252: D44 High Steer Stud (Qty: 8)
WFO 1254: D44 High Steer Nut (Qty: 8)
WFO 1255: D44 High Steer Cone (Qty: 8)
PM7359: Ford D44/60 Spindle Stud (Qty: 8)
K8194T: Dana 30/44 Ball Joints - Dana 30/44 Upper Ball Joint (Qty: 2)
K8195T: Dana 30/44 Ball Joints - Dana 30/44 Lower Ball Joint (Qty: 2)
344907: Crush Lock Nut, 7/16-20 (Qty: 10)

Product Series

Details

  • D44001F7-KIT
  • D44001F7-KIT
  • Reid
  • New

Categories

Product Series

Shipping Information

  • Item Requires Shipping
  • 52.0 lbs.
  • W14.0000” x H14.0000” x L14.0000”
  • This item ships in its own box.
