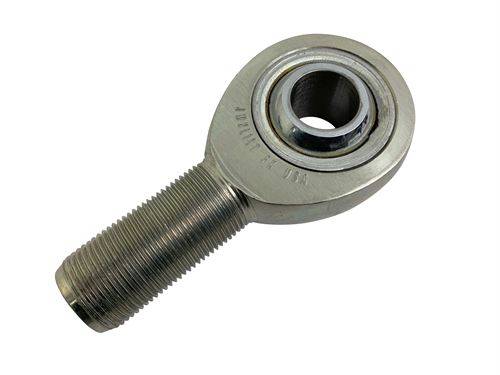

FK JMX 1.25" x 1" Right Hand

These are the JMX Series Rod Ends which are a 3 piece Rod End with a High Strength Heat Treated Alloy design and an upgraded PTFE Liner which allows for lubrication without attracting dirt and debris.  The rod ends we order from FK have a F2 tightness.

Right Hand Part Number- FK JMXR16T?

• (B)  DIAMETER:   1.000
• (D)  DIAMETER:  2.950
• (W) WIDTH: 1.375
• (T)  WIDTH:  1.015
• (Ball)  DIAMETER:  1.875
• (A)  LENGTH: 4.500
• (N)  THREAD:  1-14
• (C)  LENGTH: 2.500
• (a) MISALIGNMENT ANGLE: 17
• ULT Static Radial Load: 107,182 lbs
• Weight: 2.46 lbs
