D60 Heavy Duty Cross-Over Steering Kit Tie Rod Taper

WFO 1142HDA-T-KIT
Pricing: $263.75

Qty:

Description

D60 Heavy Duty Cross-Over Steering Kit for Kingpin Dana 60 Front Axles.  This cross-over steering kit comes with our heavy duty adjustable cross-over steer arm as well as an adjustable top plate for the driver's side.  The HDA steering arm and top plate eliminates the kingpin springs and replaces them with an adjustable set screw and jam nut to set kingpin pre-load.  As the kingpin bushing wears out, the pre-load can be adjusted tighter without taking anything apart.

We suggest running this heavy duty kit over the standard kit if you have 40" tires or larger. We also suggest using this kit if you are running offset rims, or bias ply tires.

For full off-road applications, we also suggest using our bronze upper bushings along with these arms.

Click here for installation instructions

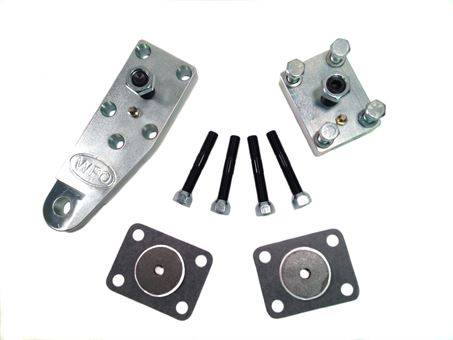

This Kit includes:
WFO 1112HDA: D60 Heavy Duty Adjustable High Steer Arm, RH (Qty: 1)
WFO 1153: D60 High Steer Studs (Qty: 4)
WFO 1152: D60 High Steer Nuts (Qty: 4)
WFO 1140HDA: D60 Adjustable Cap (Qty: 1)
DAN37307: D60 Kingpin Cap Gasket (Qty: 2)
WFO 3416-R: 3/4"-16 Jam Nut, Right Hand - 3/4"-16 Jam Nut, Right Hand (Qty: 2)
SSS-34F134P: 3/4-16 Set Screw For HDA Arms (Qty: 2)
1095K65: Grease Zerk (Qty: 2)
WFO 1100-HDA: D60 3/8" Spacer For HDA Arms (Qty: 2)
BOLT, 1/2-20 x 2" Grade 5: Bolt, 1/2-20 x 2" Grade 5 (Qty: 4)
L WASHER, 1/2": Lock Washer, 1/2" (Qty: 4)

Product Series

Details

  • WFO 1142HDA-T-KIT
  • WFO 1142HDA-T-KIT
  • WFO Concepts
  • New

Categories

Shipping Information

  • Item Requires Shipping
  • 11.0 lbs.
