Link Mount, Under Frame, 5/8" Bolt
This under the frame link mount is designed to fit our 1.25" heims with misalignment spacers and works great to set up lower links. We have recently redesigned it to be slightly shorter in length and the cap has also been shortened so it's easier to access the heim joint.
You will need to weld the cap on. This provides more strength to the bracket.
Width - 2 5/8"
Height (overall) - 3.5"
Height (from flat surface to center of bolt hole) - 2"
Length - 6.5"
Hole size - 5/8"
Material Thickness - 1/4"
MADE IN THE USA!

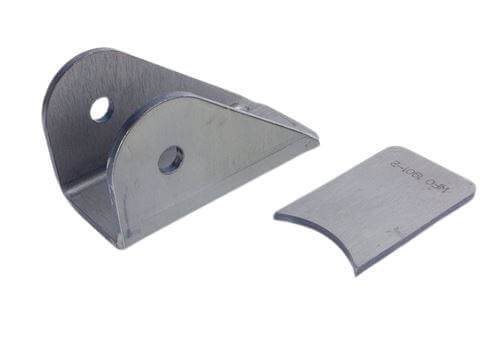

This Kit includes:
WFO 1901-1: Link Mount Body, Under Frame, 5/8" Hole (Qty: 1)
WFO 1901-2: Link Mount Cap (Qty: 1)
- Item Requires Shipping
- 5.0 lbs.
