GM HD Coilover Towers, Left and Right

WFO 5410-PR
Was: $330.00
Sale: $280.50
Save: 15%
Save: $49.50

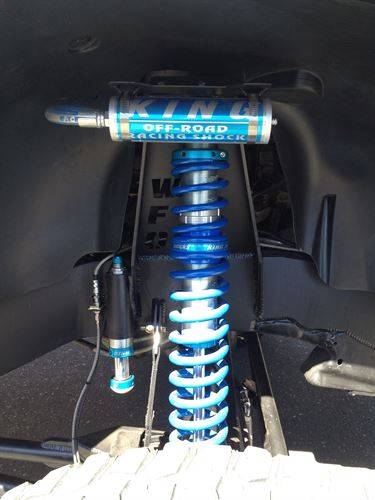

Our Duramax Coil Over Shock towers are a perfect fit when converting your Duramax to a straight axle and running coil overs. They are laser cut out of 1/4" plate then welded together.

These brackets are designed to fit inside the stock wheel well. There are two key way notches on the back of the legs that line up with the two holes on the frame plates to help properly locate the towers.


  • The tower measures 10.75" from top of frame to center of shock bolt hole.
  • The tower leans out from the face of the frame 5 1/2"
  • The shock tabs are standard 1.5" apart
  • Sold as a pair.
  • Includes Grade 8 hardware to mount shock


You can also purchase separately our Universal Coil over Reservoir Mounts which bolt to the top of the shock tower so you can easily mount your reservoir up, out of the way. See the suggested items.


Welding required to mount to the frame.




This Kit includes:

WFO 5410-L: Duramax Coilover Tower - Left Side (Qty: 1)
WFO 5410-R: Duramax Coilover Tower - Right Side (Qty: 1)
BOLT, 1/2-13 x 3" GRADE 8: BOLT, 1/2-13 x 3" GRADE 8 (Qty: 2)
WASHER, 1/2" GRADE 8: 1/2" SAE Washer, GRADE 8 (Qty: 4)
NYLOCK, 1/2-13 GRADE 8: NYLOCK, 1/2-13 GRADE 8 (Qty: 2)
