Leaf Spring Hanger for 2.5" Springs

WFO 1900
Was: $25.99
Sale: $22.09
Save: 15%
Save: $3.90

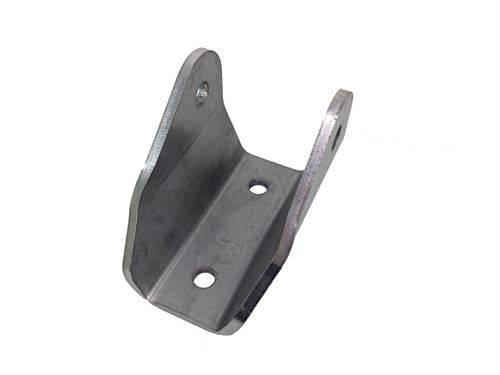

Our leaf spring hanger brackets are CNC laser cut and formed from 1/4" mild steel. They have a 3" wide opening with 9/16" bolt holes. They are designed to work with most standard 2.5" leaf springs with a 1/4" bushing on each side.

We always suggest using a 3" wide steel sleeve inside your leaf spring bushings and staying with the 9/16" bolt. This allows you to tighten the bolt without smashing down the bracket and destroying your bushings!

The 9/16" bolt holes are located 2-3/4" from the mounting surface.

The hanger also has two mounting bolt holes on the mounting surface.  The hanger can be bolted on or welded on.

These hangers are sold separately, not in pairs.





  • WFO 1900
  • WFO 1900
  • WFO Concepts
  • New

Shipping Information

  • Item Requires Shipping
  • 2.5 lbs.
  • W3.6250” x H4.0000” x L5.0000”
