Dana 60 Cross-Over Steering Kit, Fullsize, Bent Draglink

WFO D60-X-BKIT
Pricing: $549.99

Qty:

Description

Kingpin Dana 60 Cross-Over Steering Kit. This kit is designed to fit '73-'98 fullsize Chevy and GMC trucks.

The draglink is bent to clear the stock cross-member. The kit includes all of the parts you will need to install cross-over steering. The bent tube is shipped extra long. You will need to weld the hex shape tube inserts yourself. This kit fits 4" to 10" lifted trucks.

NOTE: When using this kit on '73 to '87 Chevy and GMC trucks, you will need to install a 2wd steering box.

MADE IN THE USA!



WARNING: The bent tube will need to be cut to fit your length. You will need to weld the inserts into the tube.

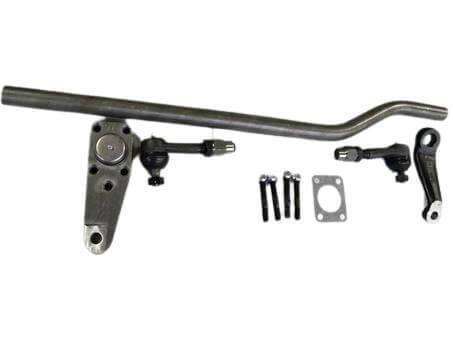

This Kit includes:
WFO 1.5B: Bent Drag Link Tube, 1.5 x 0.250 DOM (Bar only) (Qty: 1)
WFO 1876-L: 7/8"-18 LH Threaded Tube Insert, 1" I.D. Tube (Qty: 1)
WFO 1876-R: 7/8"-18 RH Threaded Tube Insert, 1" I.D. Tube (Qty: 1)
WFO 1142: D60 Crossover Arm (Qty: 1)
WFO 1104M: Superlift 1104, Machined for Chevy Draglink Taper (Qty: 1)
WFO 1152: D60 High Steer Nuts (Qty: 4)
WFO 1153: D60 High Steer Studs (Qty: 4)
ES2027L: 7/8"-18 LH Thread MOOG Draglink End (Qty: 1)
ES2026R: 7/8"-18 RH Thread MOOG Draglink End (Qty: 1)
ES7818L: 7/8"-18 Jam Nut, Left Hand - 7/8"-18 Jam Nut, Left Hand (Qty: 1)
ES7818R: 7/8"-18 Jam Nut, Right Hand - 7/8"-18 Jam Nut, Right Hand (Qty: 1)
DAN620132: D60 Upper Kingpin Cap RH Only (Qty: 1)
DAN37307: D60 Kingpin Cap Gasket (Qty: 1)
