Dana 60 Cross-Over Kit, Fullsize, Straight Draglink

WFO D60-X-KIT
Pricing: $550.00
Qty:

Description

Kingpin Dana 60 Cross-Over Steering Kit.

This Cross-Over Steering kit is designed to fit full-size Chevy / GMC trucks, Jeeps, etc. with 4"-10" of lift.

The kit includes all parts you will need to install cross-over steering on a Kingpin Dana 60 front axle, using a standard Saginaw steering box.



NOTE:

- When using this kit on '73 to '87 Chevy and GMC trucks, you will need to install a 2wd steering box.
- This will NOT fit many '80 and newer Ford steering boxes.

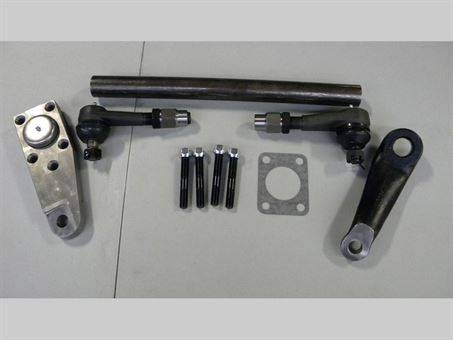

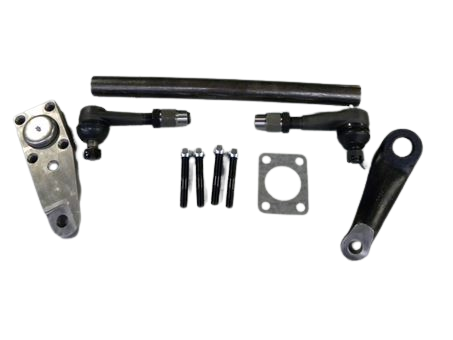

Includes:

  • 3.5 feet of 1.5"x.250 wall DOM
  • Left and Right, Hex shape Tube inserts. (You will need to weld the tube inserts in yourself)
  • WFO D60 Crossover Steering Arm with studs and nuts
  • Upper King Pin cap and gasket
  • 4" Drop Pitman arm machined for Draglink End
  • Left and Right Moog Draglink ends with Jam nuts



WARNING: With the straight draglink tube, the draglink may hit the cross-member in 73-87 Chevy trucks.



MADE IN THE USA!



This Kit includes:
WFO 1142: D60 Crossover Arm (Qty: 1)
WFO 1104M: Superlift 1104, Machined for Chevy Draglink Taper (Qty: 1)
WFO 1152: D60 High Steer Nuts (Qty: 4)
WFO 1153: D60 High Steer Studs (Qty: 4)
ES2027L: 7/8"-18 LH Thread MOOG Draglink End (Qty: 1)
ES2026R: 7/8"-18 RH Thread MOOG Draglink End (Qty: 1)
ES7818L: 7/8"-18 Jam Nut, Left Hand - 7/8"-18 Jam Nut, Left Hand (Qty: 1)
ES7818R: 7/8"-18 Jam Nut, Right Hand - 7/8"-18 Jam Nut, Right Hand (Qty: 1)
DAN620132: D60 Upper Kingpin Cap RH Only (Qty: 1)
DAN37307: D60 Kingpin Cap Gasket (Qty: 1)
DOM 1.5"x.250"-3.5 Feet: DOM 1.5"x.250" (1.0" I.D.) -3.5 Feet (Qty: 1)
WFO 1876-L: 7/8"-18 LH Threaded Tube Insert, 1" I.D. Tube (Qty: 1)
WFO 1876-R: 7/8"-18 RH Threaded Tube Insert, 1" I.D. Tube (Qty: 1)



Details

  • WFO D60-X-KIT
  • WFO D60-X-KIT
  • WFO Concepts
  • New

Categories

Shipping Information

  • Item Requires Shipping
  • 30.0 lbs.
