Dana 60 Kingpin, Adjustable Springless Cap, with Hardware

Pricing: $79.99


Dana 60 Kingpin, Adjustable Springless Cap, with hardware.

Over time the stock Dana 60 Kingpin springs that preload the Kingpin bushings lose their tension which results in play in the knuckles. This will cause loose steering and death wobble after hitting a bump. This kit eliminates the Kingpin spring giving you better handling characteristics. We replace the spring with a 3/8" thick washer and a 3/4" set screw that will preload the kingpins.

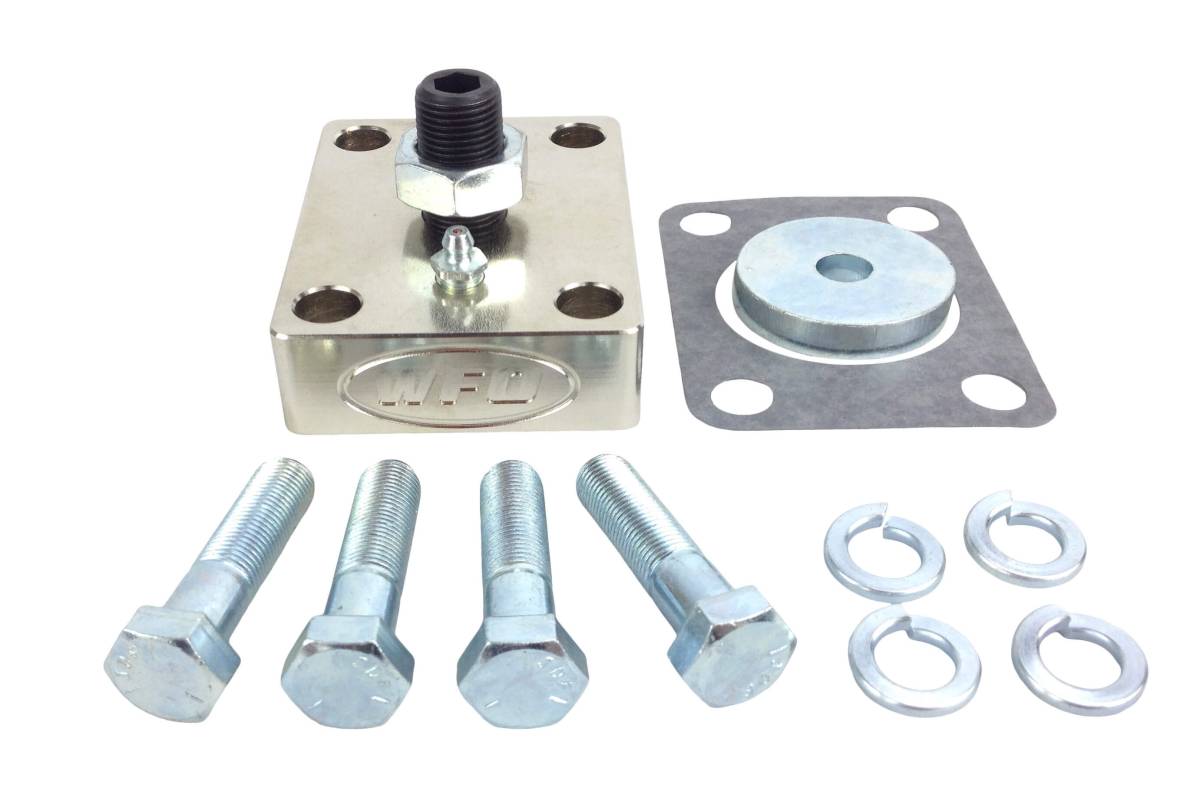

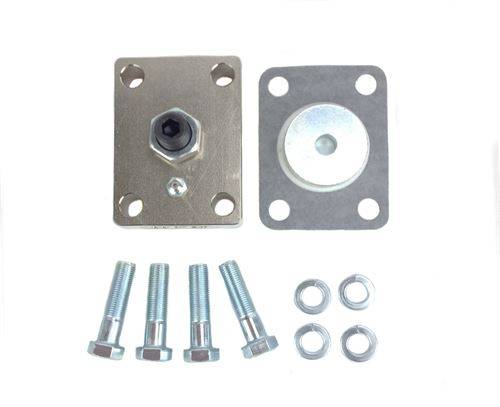

If you purchase this kit, you will get the springless cap, 3/8" washer, set screw, jam nut, zerk fitting, gasket and four 1/2" x 2" bolt and lock washers.

The cap is Zinc plated to help fight corrosion.



This Kit includes:
WFO 1140HDA: D60 Adjustable Cap (Qty: 1)
WFO 3416-R: 3/4"-16 Jam Nut, Right Hand - 3/4"-16 Jam Nut, Right Hand (Qty: 1)
1095K65: Grease Zerk (Qty: 1)
WFO 1100-HDA: D60 3/8" Spacer For HDA Arms (Qty: 1)
SSS-34F134P: 3/4-16 Set Screw For HDA Arms (Qty: 1)
DAN37307: D60 Kingpin Cap Gasket (Qty: 1)
L WASHER, 1/2": Lock Washer, 1/2" (Qty: 4)
BOLT, 1/2-20 x 2" Grade 5: Bolt, 1/2-20 x 2" Grade 5 (Qty: 4)



  • WFO 1140HDA-K
  • WFO 1140HDA-K
  • WFO Concepts
  • New


Shipping Information

  • Item Requires Shipping
  • 5.0 lbs.
  • W4.0000” x H4.0000” x L6.0000”
