Chevy D60 Front U-Bolt Plates, One Drivers and One Passengers Side

WFO 1792-PR
Was: $58.98
Sale: $50.13
Save: 15%
Save: $8.85

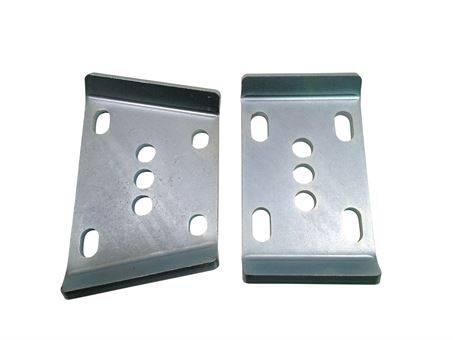

This is a pair of Chevy Dana 60 Front U-Bolt Plates - one driver side plate and one passenger side plate.

The passenger side plate is a specially cut leaf spring plate that only fits the axle housing side of Chevy Dana 60 front axle. The plate is wider than most and has two holes closer together to fit the two bolts or studs that thread into the top of the differential housing. The plate is CNC laser cut, formed from 3/8" steel, and silver zinc plated.

The driver side plate is our standard 2.75" leaf spring plate, WFO 1795. If you transfer the 3 holes in the leaf spring plates to your housing and leaf spring perch, you can drill them out and move the front axle forward or back 1".




Note: Will not fit Dodge Dana 60 front axles.


This Kit includes:
WFO 1792: Chevy Dana 60 Front U-Bolt Plate (Qty: 1)
WFO 1795: 2.75" Leaf Spring Plate (Qty: 1)



Shipping Information

  • Item Requires Shipping
  • 7.8 lbs.
  • W5.5000” x H1.7500” x L8.5000”
