Leaf Spring Axle Relocation Plates

WFO 1700-2.5-KIT
Pricing: $49.00
Qty:

Description

These 1/2" tall axle relocation plates are great for moving your axle slightly forward or backward, while correcting pinion angle at the same time.

Our relocation plates can be used with or without degree shims. We have included two different locating bolts, that will allow you to use these with or without degree shims.

The relocation blocks will allow you to move the axle 1" or 1.5" forward or backwards, depending on which hole you use. Or, if you don't think you need the offset then you could use the middle hole and keep your options open.

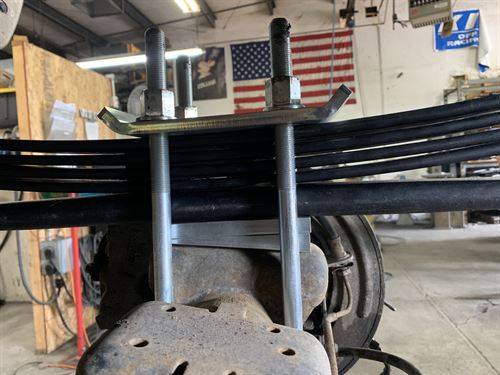

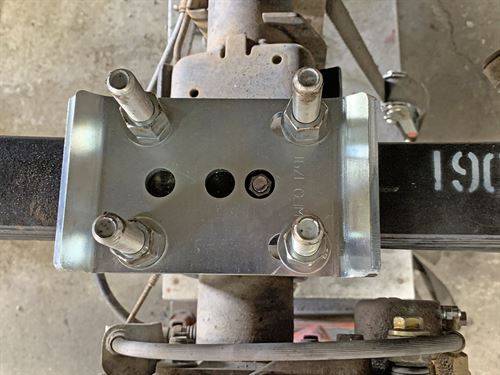

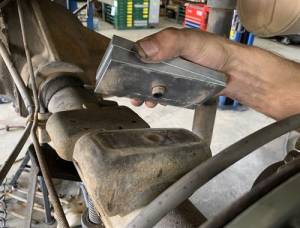

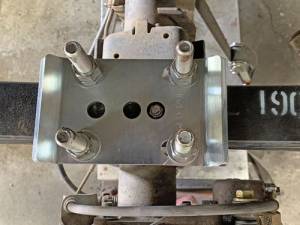

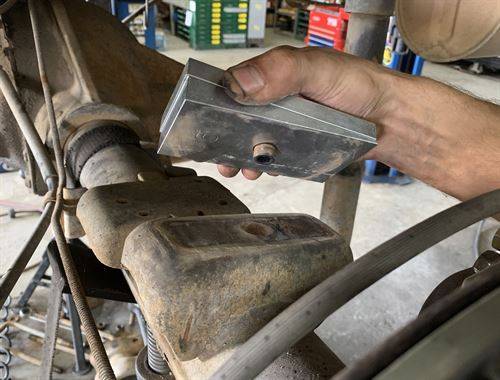

It's an easy install, simply slip the relocation plate between your spring perch and your leaf spring. Then tighten your u-bolts back down. You will need to drill a new hole in your existing leaf spring top plates, or we now offer our 2.5" wide leaf spring plates with offset holes to line up with the center pin offset of the relocation plate.

  • 2.5" wide
  • 1/2" thick.
  • Zinc coated to help fight off corrosion
  • (2) 3/8" bolts x 1/2" long and (2) 3/8"' bolt x 3/4" long
  • Sold as a pair

DEGREE SHIMS AND LEAF SPRING PLATES SOLD SEPERATELY

MADE IN THE USA!




Shipping Information

  • Item Requires Shipping
  • 3.5 lbs.
