Rear Axle Truss, Ford 9" Big Banjo

WFO RT-F9BB
Was: $220.00
Sale: $193.60
Save: 12%
Save: $26.40
Qty:

Description

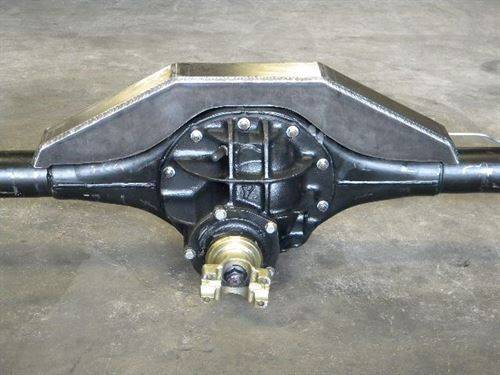

This is a truss for the Ford 9" big banjo rear axle housing.

It is CNC Plasma cut from 1/4" P&O steel then bent and welded together. All you need to do is place it on the axle and weld it on!

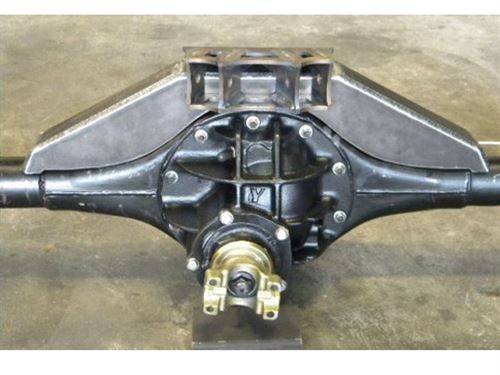

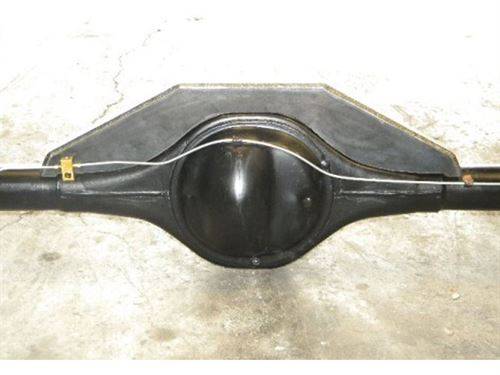

The low profile design allows for easier link set up and prevents clearance issues. The vertical height over the pumpkin is 2" and the overall width is 29". We have included a picture of the truss with our link mount (sold separately) and also a picture of the rear of the truss.

See below for suggested link mounts.



MADE IN THE USA!



Note: This will NOT fit the smaller style car housings.



Details

  • WFO RT-F9BB
  • WFO RT-F9BB
  • WFO Concepts
  • New

Shipping Information

  • Item Requires Shipping
  • 23.0 lbs.
  • W3.2500” x H6.5000” x L29.1880”
