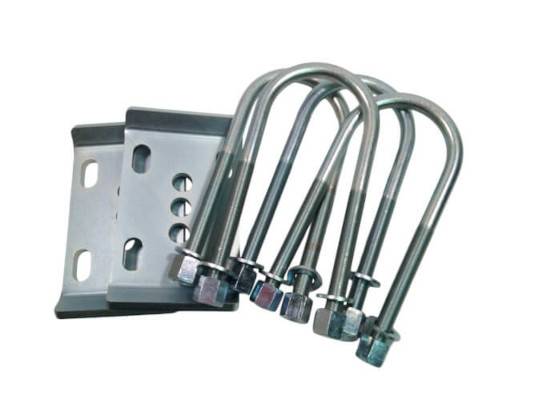

U-Bolt Flip Kit For 3.5" Axle Tube

WFO 1776-KIT
Was: $123.50
Sale: $111.15
Save: 10%
Save: $12.35
Qty:

Description

This u-bolt and plate kit fits 3.5" diameter axles (NO BLOCKS). This u-bolt kit comes with two leaf spring plates and 4 u-bolts with nuts and washers. The spring plates are the universal (WFO 1791) spring plates for 2.5" wide leaf springs. They are CNC laser cut from 3/8" steel with both ends broke up for strength and silver zinc plated. The u-bolts are 5/8" thick and come with washers and high nuts. The U-bolts are 3.5" wide and 9" long. U-bolt measurements are measured from inside of the bend to the end of the threads.

This Kit includes:

WFO UB-006: 3.5” x 9” x 5/8” Round U-Bolt (Qty: 4)
HN-58F5Z: 5/8" High Nut (Qty: 8)
FWH-58F436Z: 5/8" Hardened Washer (Qty: 8)
WFO 1791: 2.5" Spring Plate, Universal, Chevy 44/10 Bolt Front (Qty: 2)

Product Series

Details

Shipping Information

  • Item Requires Shipping
  • 10.0 lbs.
