U-Bolt Flip Kit For 3.375" Dia Axle Tube, 14 Bolt

WFO 1775-KIT
Pricing: $123.50
Qty:

Description

This u-bolt kit fits 14 bolt full floating Chevy rear axles with standard Chevy or Jeep leaf springs.

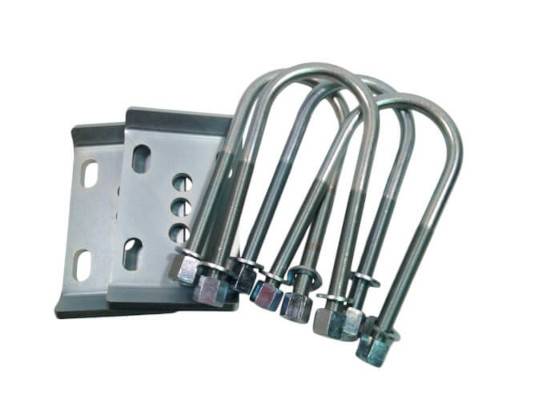

This u-bolt kit comes with two leaf spring plates and 4 u-bolts with nuts and washers.  The spring plates are the universal (WFO 1791) spring plates for 2.5" wide leaf springs.  They are CNC laser cut from 3/8" steel with both ends broke up for strength and silver zinc plated.  The u-bolts are 5/8" thick and come with washers and high nuts.  The U-bolts are 3.375" wide and 9" long.  They have 5" of threads.

U-bolt measurements are measured from inside of the bend to the end of the threads.

Please be sure that you check your axle tube diameter to make sure these will fit. Some newer model 14 bolts have larger axle tubes or thicker spring packs.



This Kit includes:
WFO UB-005: 3.375” x 9” x 5/8” Round U-Bolt (Qty: 4)
HN-58F5Z: 5/8" High Nut (Qty: 8)
FWH-58F436Z: 5/8" Hardened Washer (Qty: 8)
WFO 1791: 2.5" Spring Plate, Universal, Chevy 44/10 Bolt Front (Qty: 2)



Product Series

Shipping Information

  • Item Requires Shipping
  • 15.0 lbs.
