Inside Frame Link Mount for 1.25" Heim 10 Degrees Single Link Mount 9/16" bolt hole

WFO 1932-10
Was: $54.99
Sale: $46.74
Save: 15%
Save: $8.25
Qty:

Description

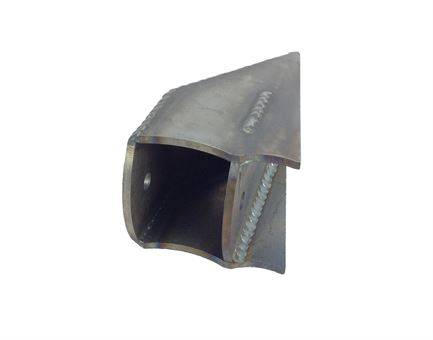

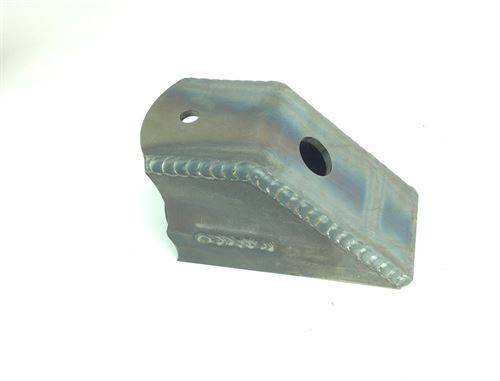

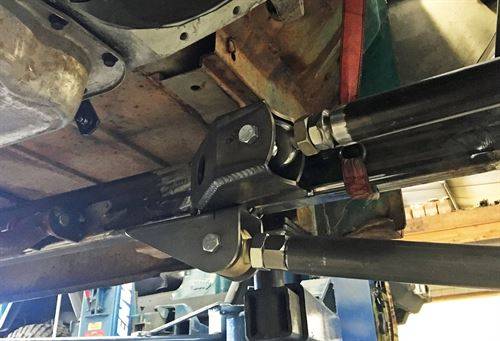

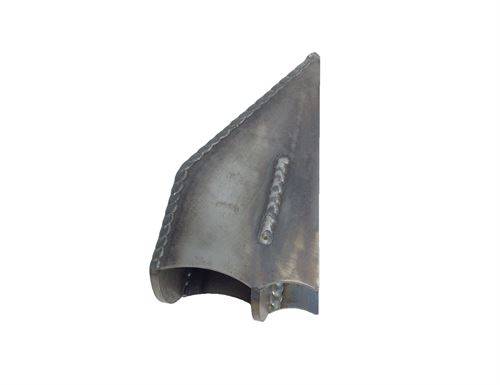

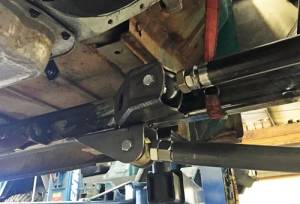

This link mount works great for the upper link mount on front 3 link setups. It welds to the inside of the frame, and has a 2.625" wide opening for a 9/16" bolt. We use this with 1.25" heim joints with 1" to 9/16" misalignment spacers or Johnny Joints. It is fully welded inside and out with 1/4" laser cut P&O steel.

It has a 10 degree offset from the mounting surface.



MADE IN THE USA!



This Kit includes:
WFO 1932-10: Inside Frame Link Mount, 1.25" Heim, 9/16" Bolt, 10 Degrees (Qty: 1)



Product Series

Details

  • WFO 1932-10
  • WFO 1932-10
  • WFO Concepts
  • New

Categories

Shipping Information

  • Item Requires Shipping
  • 4.0 lbs.
