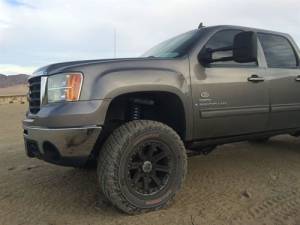

00-10 WFO GM HD 3" SAS Kit using Ford Super Duty Axle (Radius Arm)
This is our '00-10, 3" Radius Arm GM HD Straight Axle Swap Kit utilizing the '05+ Ford Super Duty D60 axle from a F250-350. We like this axle because you can retain the factory ABS sensors and it has a great turning radius. The kit includes a plug-n-play pigtail wiring harness to easily connect the Ford ABS wires to the Chevy ABS wires.
This kit for the front end only. Coil-Overs are sold separately. Our 3" kit fits both Diesel and Gas 2500/3500 GM HD trucks and is designed to clear 35" tires with 8" travel coil overs. This will give you 4" of Up Travel and 4" of Down Travel from ride height. This kit also fits 1999-2006 Classic Body Style Suburbans.
The kit will require your donor front axle to be fairly complete. Our kit utilizes the factory Ford trac-bar, the factory ford brakes and tie-rod, and the factory ford lower draglink end at the axle.
Gas HD truck models may need to do an exhaust modification on the Driver's side for clearance.
Our crossmember is designed for automatic transmissions and would need to be modified to fit manual transmissions.
This kit is designed to run the front factory GM driveshaft with our supplied conversion u-joint. The kit will generally push the front axle forward approximately 1" to help clear the tires in the fender well.
We sell core axles separately and offer a machining process to convert the factory ford unit bearings to a 8 on 6.5 bolt pattern to reuse your current wheels. Give us a call for more information on this service.
Note: May NOT work with some after market Twin/Compound Turbo Chargers.
Install time is typically 40 hours.
* * This kit ships via truck freight.
* * In store pick up available - call to order.
MADE IN THE USA!
- WFO FPC-HD Frame Plates
- WFO DMAX-CM GM HD 3 Piece Crossmember
- WFO 5410-PR Pair of Shock Towers
- WFO 5405-KIT Universal Coilover reservoir mounts
- WFO 5360-KIT Coil over shock mounts for the axle side
- WFO DL-3107 - Bent Draglink
- PM536FPA-BU-TR Flat Pitman Arm with hole tapered
- WFO DMAX-FSD-LINKS-RADIUS ARM-KIT GM HD 2001-2010 05+ Ford Super Duty Radius Arm Kit
- WFO DMAX-FSD-BOLT-KIT - Metric bolts for the Ford Super Duty Links on the axle side
- WFO TBB-F-DMAX-3-KIT - Trackbar bracket for the frame side. (You will use the stock bracket on the axle side)
- WFO 1380 Upper Bump Stops
- 2-1153 Conversion U-Joint for Front Drive Shaft
- WFO DMAX-BL-3-KIT Stainless Steel Brake Line Kit for Front Brakes
- WFO DMAX-ABS-PIGTAIL-KIT ABS Pigtails to convert from Ford '05 axle to Chevy wiring harness
