Rear Axle Truss Full Width With Pinion Guard, GM Full Floating 14 Bolt 1999-2010

WFO RT-GM14PG-FULL
Pricing: $460.00
Qty:

Description

WFO Concepts Chevy 14 Bolt Full Floater, Full Width Truss with Pinion Guard.

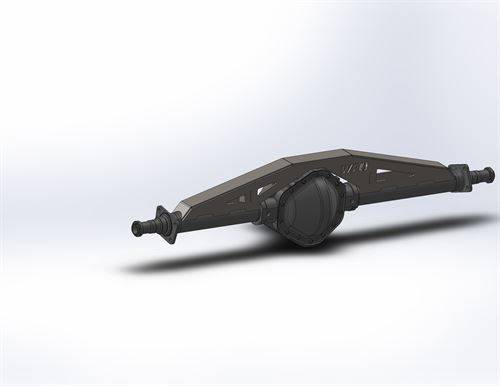

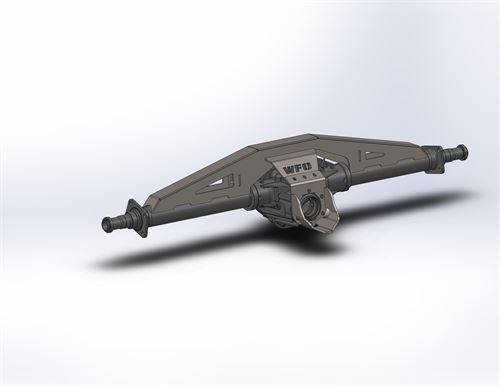

This truss is a perfect start to your rear link setup. The truss is laser cut from 1/4" thick steel and comes welded together as you see in the picture. The curved pinion guard is made out of 3/8" thick steel. It also comes with longer pinion support bolts and the necessary hardware to bolt the pinion support to the truss. You can also purchase the individual upper mounts so you can set the spread where you want. See the related items for suggested link mounts.

Fits 1999-2010 GM 14 bolt full floating rear axles with a 10.5" ring gear. Please Note: In order to assure a tight and low fit on a 1999-2010 newer ribbed housing, you will need to grind a few casting ribs off the top of your existing 14 Bolt housing.

Details

  • WFO RT-GM14PG-FULL
  • WFO RT-GM14PG-FULL
  • WFO Concepts
  • New

Shipping Information

  • Item Requires Shipping
  • 60.0 lbs.
  • W3.0000” x H7.1880” x L55.5000”
