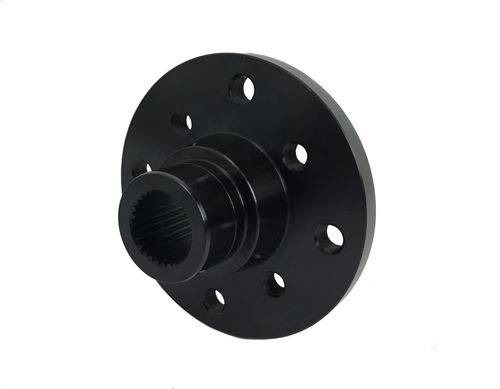

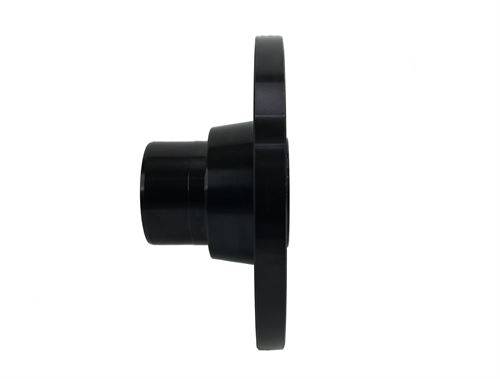

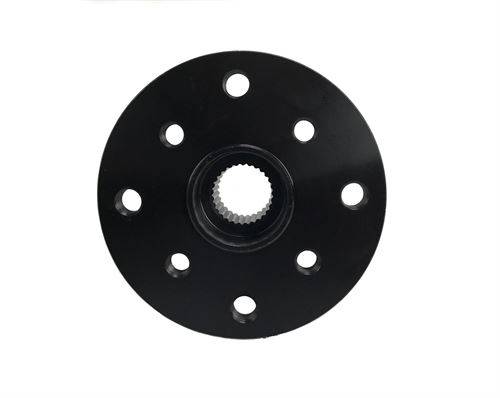

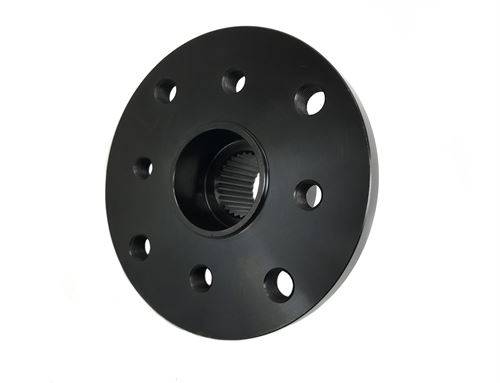

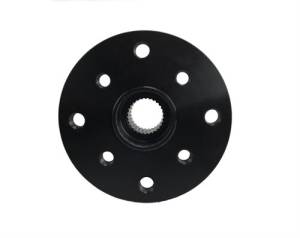

Dana 60 70 Flange, 29 Spline

DM 3055
Limited Supply
Pricing: $75.00


If you are building a buggy or high horsepower rig, this is the perfect flange for your front and rear axles!

With this flange, you will no longer need to worry about ripping out your u-bolts or breaking the u-joint centering knobs. You can get a 1310, 1350 or a 1410 flange from us or your local driveline shop to go with this yoke.

The yoke is 29 spline and is a direct bolt-on for most Dana 60 and 70 front and rear axles.

This Flange has two bolt patterns:
2.474" x 2.474" square bolt pattern that is threaded 7/16x20 fine thread. This fits the 1310 flanges.
3.0" x 3.0" square bolt pattern that is threaded 1/2" x 20 fine thread. This fits the 1350, 1410, and 1480 flanges.

OD of flange is 5.5", Pilot diameter is a male, 2.00", The threads could easily be drilled out as well.


Product Series


  • DM 3055
  • DM 3055
  • WFO Concepts
  • New

Shipping Information

  • Item Requires Shipping
  • 7.0 lbs.
