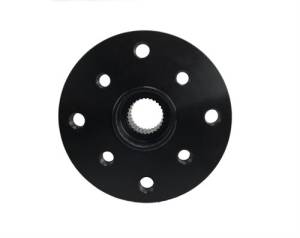

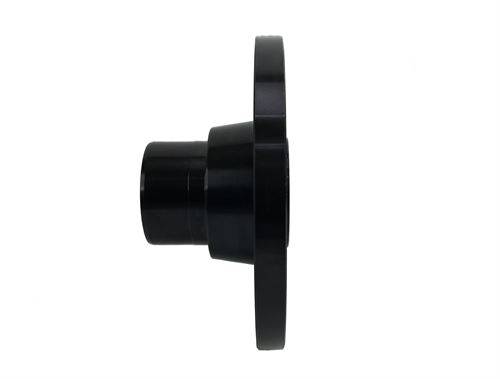

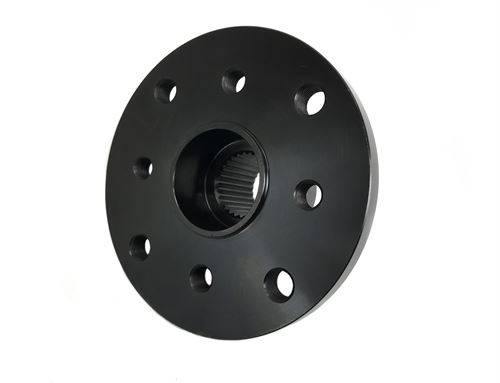

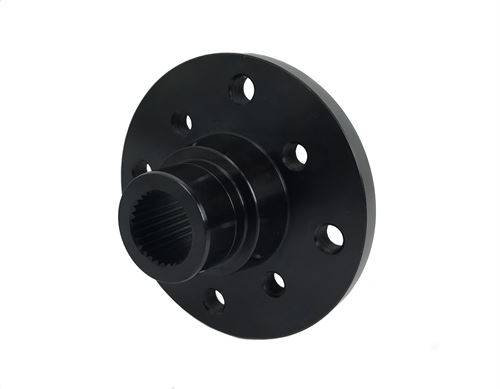

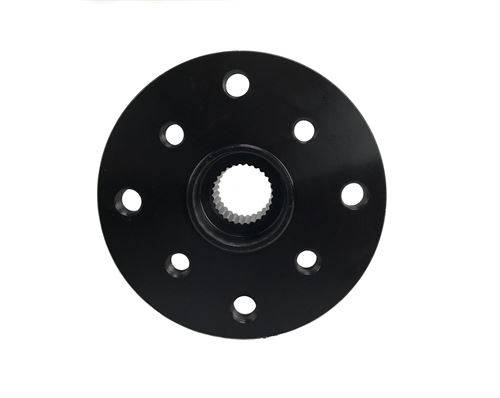

Dana 60 70 Flange, 29 Spline, with Four 1/2" Bolts
This flange comes with four 1/2" x 20 fine thread bolts.
If you are building a buggy or high horsepower rig, this is the perfect flange for your front and rear axles!
With this flange, you will no longer need to worry about ripping out your u-bolts or breaking the u-joint centering knobs. You can get a 1310, 1350 or a 1410 flange from us or your local driveline shop to go with this yoke.
The yoke is 29 spline and is a direct bolt-on for most Dana 60 and 70 front and rear axles.
This Flange has two bolt patterns:
2.474" x 2.474" square bolt pattern that is threaded 7/16x20 fine thread. This fits the 1310 flanges.
3.0" x 3.0" square bolt pattern that is threaded 1/2" x 20 fine thread. This fits the 1350, 1410, and 1480 flanges. (Included)
OD of flange is 5.5", Pilot diameter is a male, 2.00", The threads could easily be drilled out as well.
- Item Requires Shipping
- 7.0 lbs.
