Reid, Ford 44 Knuckles Passenger Side (Right Side)

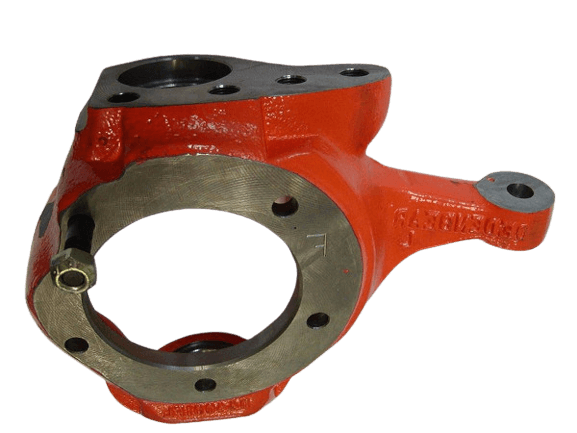

D44001FR.  Ford Dana 44, right hand, flat-top steering knuckle, 4 hole, 5 bolt spindle.  Ford never made a factory 1/2 ton, dana 44, flat top knuckle.  However, from 1975 to 1979, all 3/4 ton Ford 44 front axles had flat top knuckles with 5 bolt spindles.  If you try  to use the 3/4 ton knuckles with half ton brakes and outers, it won't fit.  Due to the lack of steering options for the 1/2 tons,  Reid Racing built this replacement knuckle.  This knuckle is "Made in the USA", and is cast thicker and stronger than factory knuckles.  The top is cast flat and milled, drilled, and tapped for 4 hole steering arms.  (3 hole steering arms will still work fine)  The new knuckle also has dual steering stops.

The factory ford 1/2 ton 44 knuckle was cast with a few different tie-rod tapers and tie-rod location.  Due to this, we suggest buying these knuckles in pairs to ensure that the right and left sides match properly.
