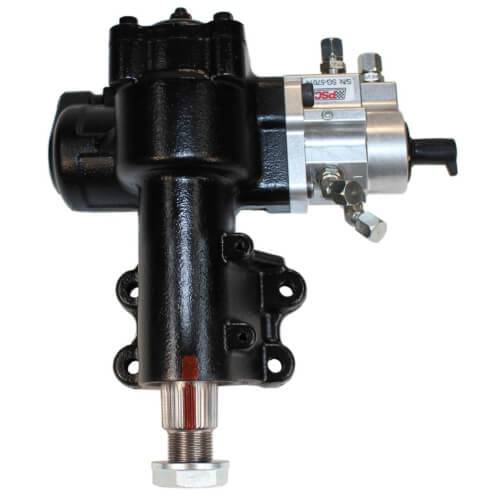

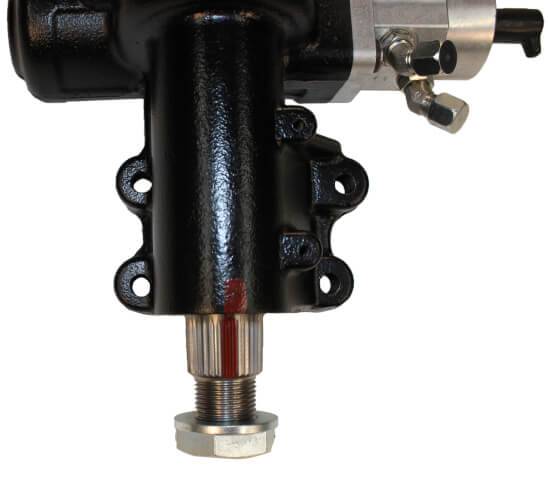

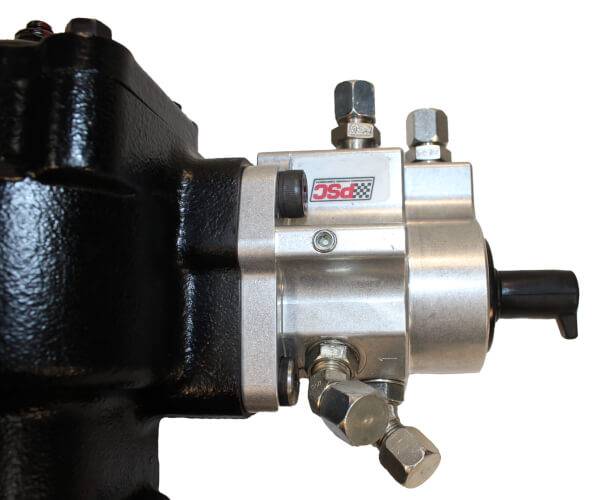

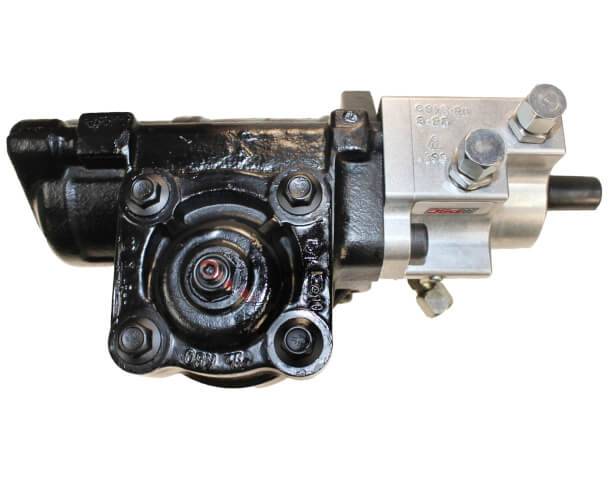

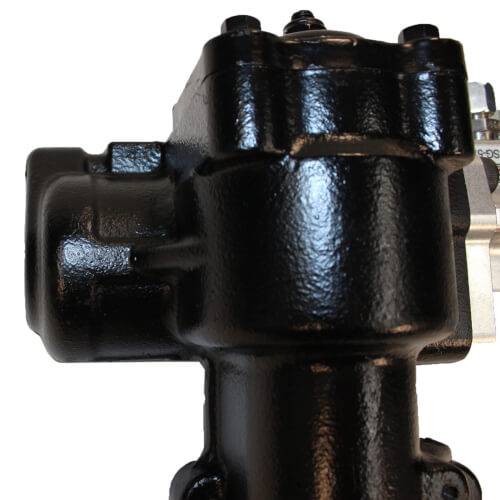

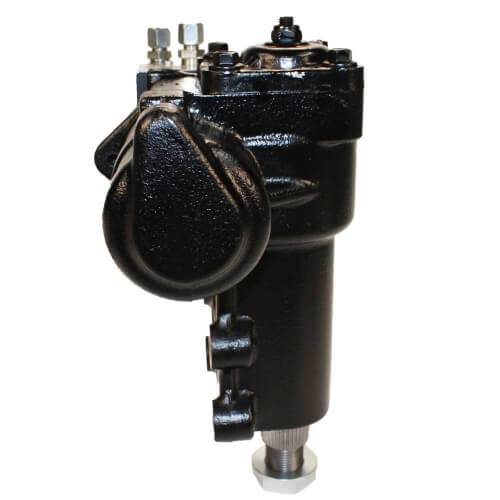

PSC XDR Outside the Frame Cylinder Assist Steering Gear Box

Our WFO custom-tuned steering xox from PSC Motorsports is the result of over a year of collaboration to meet our specific requirements. Designed for high performance, this steering gear box mounts externally on your frame with the pitman arm oriented towards the front, allowing for greater axle movement when accommodating larger tires and avoiding body interference as well as other suspension components. It features a substantial 42mm sector shaft and includes two additional ports for hydro assist. The specially valved high-flow tower from PSC guarantees a smooth driving experience on highways while facilitating the handling of oversized tires. Additionally, the cylinder assist feature acts as a reliable steering stabilizer, protecting your vehicle from road shocks and enhancing overall ride quality.

Includes:

(1) - Custom Tuned PSC Steering Box

(1) - SF01 (M18x1.5 ORB to -6) included but not installed

(1) - SF02 (M16x1.5 ORB to -6) included but not installed

(2) - H6802-6-6 (Dual 45* 6AN ORB fittings pre-installed on box)
