WFO 2005-2015 Toyota Tacoma SAS Kit Using 2013-2021 Ford Super Duty Axle With PSC Steering Box and Crossover Steering Setup
Axle Year: 2013-2021 Ford Super Duty Dana 60 Axle
Steering Box: PSC Steering Box
Steering Setup: Crossover Steering
Description
WFO 2005-2015 Toyota Tacoma SAS Kit Using a 2013-2021 Ford Super Duty Axle
Axle Year: 2013-2021 Ford Super Duty Dana 60 Axle
Steering Box: PSC Steering Box
Steering Setup: Crossover Steering
This 2005-2015 Toyota Tacoma SAS kit uses radius arms for strength and stability. Both the upper and lower links are made from 1/4” wall DOM tube, bent just enough to clear a 40” tire at full turn.
Our CAD designed 3-piece crossmember welds in place of the factory crossmember. The WFO crossmember utilizes the factory style transmission mount and has plenty of clearance for full droop articulation of the driveline.
The WFO full-length weld on 3/16” thick frame plates not only cover up unwanted holes in the frame but add extra strength to the front end.
All the necessary hardware and frame sleeves to use a WFO tuned custom PSC steering box.
We designed this kit to be used with a 12" travel coil-over shock. Coil-over shocks are sold separately.
For the crossover steering setup, we include a heavy-duty Reid knuckle for the 2013–2021 Ford Super Duty Axle, a WFO high steer arm, steering arm hardware, and a draglink.
This kit is for the front end only. It does require welding, cutting, and grinding.
MADE IN THE USA!
This kit ships via flat rate truck freight.
In store pickup is available - please call to order in store pickup.

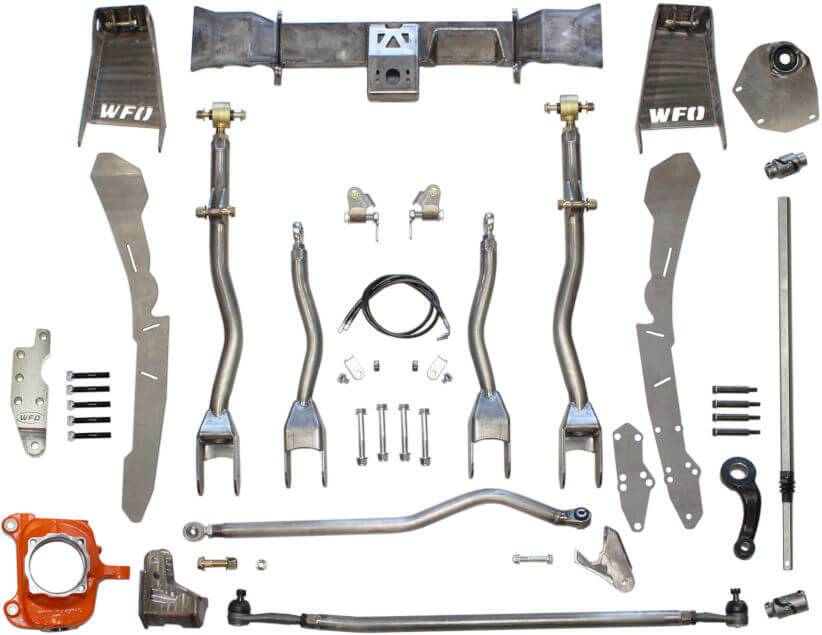

Kit includes:
Weld on 3-piece crossmember with transmission support (raw metal)
Driver and passenger frame plates with steering box tube sleeves and hardware for PSC steering box
Pair of coilover shock towers
Pair of lower coilover axle mounts
Pitman arm for a PSC steering box
Upper and lower bent links utilizing Duraflex joints combined with FK heims
Upper and lower trackbar brackets
Anti wobble trackbar with FK heim joints
Draglink with Moog rod ends
D.O.T. braided and sleeved brake lines with axle mounts
PSC pump spacer
Firewall steering column plate
Steering column with Borgeson joints
Reid knuckle for the passenger side of a 2013-2021Ford Super Duty axle
WFO high steer arm with hardware for a 2013-2021Ford Super Duty knuckle
Tie Rod Upgrade: On this version of the kit, you can upgrade to our WFO HD Tie Rod (Part #WFO TR-3161). Due to the forward steering pitman arm and the upgraded crossover steering, adding our HD tie rod is a must! This tie rod not only upgrades the overall strength of the bar and rod ends to heavier wall tubing and large 1-1/4” FK heim joints but it also gets relocated to the top of the steering tie rod location gaining roughly 3-1/4” of clearance!
