WFO Toyota Tacoma 2005-2015 SAS Kit Using 2013-2021 Ford Super Duty Axle With Toyota IFS Steering Box and Crossover Steering Setup
Description
WFO 2005-2015 Toyota Tacoma SAS Kit Using a Ford Super Duty Axle
Axle Year: 2013-2021 Ford Super Duty Dana 60 Axle
Steering Box: OEM Toyota IFS Steering Box
Steering Setup: Crossover Steering
This 2005-2015 Toyota Tacoma SAS kit uses radius arms for strength and stability. Both the upper and lower links are made from 1/4” wall DOM tube, bent just enough to clear a 40” tire at full turn.
Our CAD designed 3-piece crossmember welds in place of the factory crossmember. The WFO crossmember utilizes the factory style transmission mount and has plenty of clearance for full droop articulation of the driveline.
The WFO full-length weld on 3/16” thick frame plates not only cover up unwanted holes in the frame but add extra strength to the front end.
All the necessary hardware and frame sleeves to use an OEM Toyota IFS steering box are included. (See below for additional information regarding the OEM Toyota IFS steering box.)
We designed this kit to be used with a 12" travel coil-over shock. Coil-over shocks are sold separately.
For the crossover steering setup, we include a heavy-duty Reid knuckle for the 2013-2021 Ford Super Duty Axle, a WFO high steer arm, steering arm hardware, and a draglink.
This kit is for the front end only. It does require welding, cutting, and grinding.
MADE IN THE USA!
This kit ships via flat rate truck freight.
In store pickup is available - please call to order in store pickup.

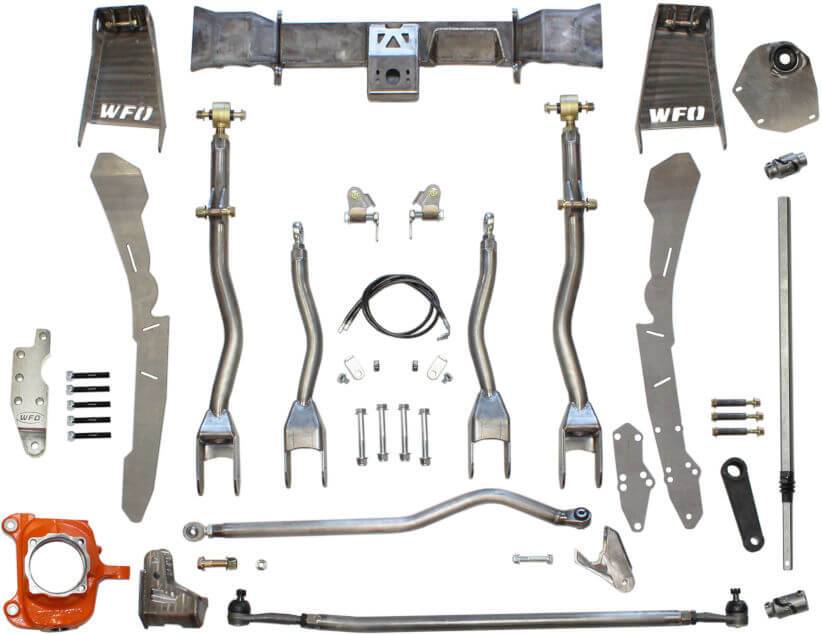

Kit includes:
Weld on 3-piece crossmember with transmission support (raw metal)
Driver and passenger frame plates with steering box tube sleeves and hardware for OEM Toyota IFS steering box
Pair of coilover shock towers
Pair of lower coilover axle mounts
Pitman arm for OEM Toyota style steering box
Upper and lower bent links utilizing Duraflex joints combined with FK heims
Upper and lower trackbar brackets
Anti wobble trackbar with FK heim joints
Draglink with Moog rod ends
D.O.T. braided and sleeved brake lines with axle mounts
PSC pump spacer
Firewall steering column plate
Steering column with Borgeson joints
Reid knuckle for the passenger side of a 2013-2021 Ford Super Duty axle
WFO high steer arm with hardware for a 2013-2021 Ford Super Duty knuckle
Additional Steering Box Info:
Toyota IFS steering boxes are categorized into two styles: ‘Early’ and ‘Late.’ The early style box was used in 1986-1988 pickups and 1986-1989 4Runners. The late style box is found in 1989-1995 pickups and 1990-1995 4Runners. There are significant internal differences between these boxes, making most parts non-interchangeable between the two. However, either style box will work with this kit.
