Dana 60 HDA Double Arm High Steer Set 5/8" Hole Pair of Arms - NO STUDS

WFO 1120HDA-58-PAIR
Was: $279.00
Sale: $223.20
Save: 20%
Save: $55.80
Qty:

Description

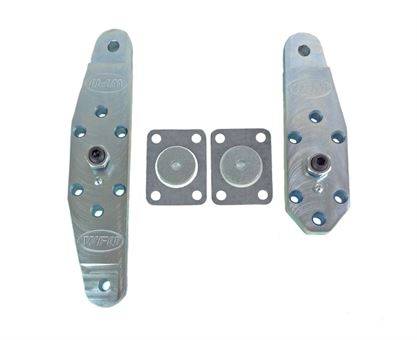

D60 HD Adjustable Double High Steer Arm Set, 5/8" Holes, NO STUDS

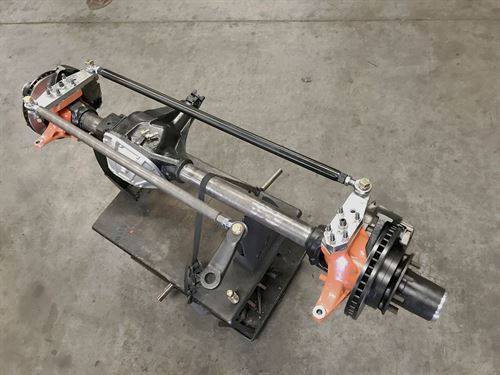

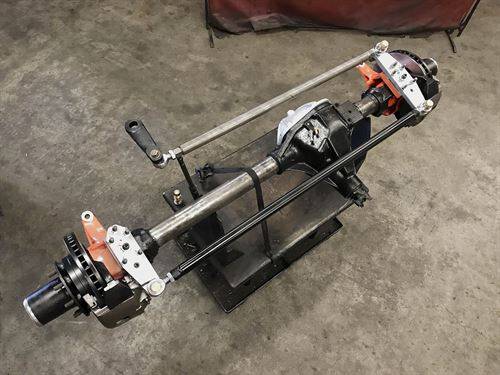

Dana 60 Heavy Duty Double Adjustable Double Arms.  These steering arms are our most popular selling Dana 60 steering arm.  We made the first set of these arms in 1999 for the Dana 60 front axle we swapped into our '89 Chevy.  These steering arms are designed to put the tie-rod behind the axle, and the draglink across the front of the axle.  This will allow you to move your axle forward without having any interference with the pitman arm and the tie-rod.  These arms work great in Jeep CJ and YJ applications, as well as full size Chevy trucks.

This HDA version has an adjustable upper set screw for pre-loading the kingpin.  The spring that is used from the factory can contribute to "death wobble" when it deflects.  With the HDA arms, the spring is removed and replaced by a washer and set screw.  This will allow you to tighten your knuckle pre-load at any time as the kingpin bushing wears out.

These arms have a straight 5/8" hole for heim joints or if you decide to taper the arms in the future to Draglink or Tierod Taper.  Kit does NOT include studs.

The arms do NOT come with studs and nuts.  Be sure to select the correct part above to get the ARP studs and nuts if necessary.  If you have a Chevy or Dodge 60 with the stock studs and tapered nuts on the driver's side, you can re-use those by drilling the arm to 17/32".  You will still need four studs and tapered nuts for the passenger's side.  Scroll down to see the related items to purchase just four ARP studs and tapered nuts.

Click here for installation instructions


This Kit includes:
WFO 1121HDA-TR: D60 HD Adjustable High Steer Arm for double arm set, LH - has 6 holes-Tie Rod Taper - D60 HD Adjustable High Steer Arm for double arm set, LH - has 6 holes-Tie Rod Taper (Qty: 1)
WFO 1122HDA-TR&DL: D60 HD Adjustable Double High Steer Arm, 6 Holes, Tie Rod & Draglink Tapers, RH - D60 HD Adjustable Double High Steer Arm, 6 Holes, Tie Rod & Draglink Tapers, RH (Qty: 1)
WFO 1100-HDA: D60 3/8" Spacer For HDA Arms (Qty: 2)
WFO 3416-R: 3/4"-16 Jam Nut, Right Hand - 3/4"-16 Jam Nut, Right Hand (Qty: 2)
SSS-34F134P: 3/4-16 Set Screw For HDA Arms (Qty: 2)
1095K65: Grease Zerk (Qty: 2)
DAN37307: D60 Kingpin Cap Gasket (Qty: 2)

Product Series

Details

  • WFO 1120HDA-58-PAIR
  • WFO 1120HDA-58-PAIR
  • WFO Concepts
  • New

Categories

Shipping Information

  • Item Requires Shipping
  • 20.0 lbs.
  • W8.0000” x H6.0000” x L18.0000”
  • This item ships in its own box.
